X105 Forward Lamp Harness to Ambient Temperature Sensor Extension Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

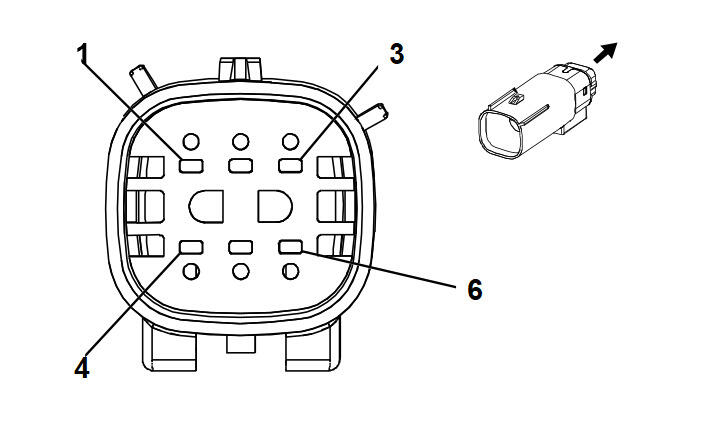

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 33472-0607
- Service Connector: 19301527
- Description: 6-Way F 150 MX Series, Sealed (GY)
|
Connector Part Information
- Harness Type: Ambient Temperature Sensor Extension
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way M (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.75 |
BK |
1250 |
I |
- |
Ground |
1 |
0.75 |
BK |
1250 |
II |
- |
| 2 |
0.5 |
WH/VT |
4333 |
I |
- |
Aero Shutter Actuator Control |
2 |
0.5 |
WH/VT |
4333 |
II |
- |
| 3 |
0.5 |
GY |
3890 |
I |
- |
Aero Shutter Control 2 |
3 |
0.5 |
GY |
3890 |
II |
- |
| 4 |
- |
- |
- |
- |
- |
Not Occupied |
4 |
- |
- |
- |
- |
- |
| 5 |
0.5 |
BU/GY |
636 |
I |
- |
Outside Ambient Air Temperature Sensor Signal |
5 |
0.5 |
BU/GY |
636 |
II |
- |
| 6 |
0.5 |
BK/BU |
61 |
I |
- |
Outside Ambient Temperature Sensor Low Reference |
6 |
0.5 |
BK/BU |
61 |
II |
- |
