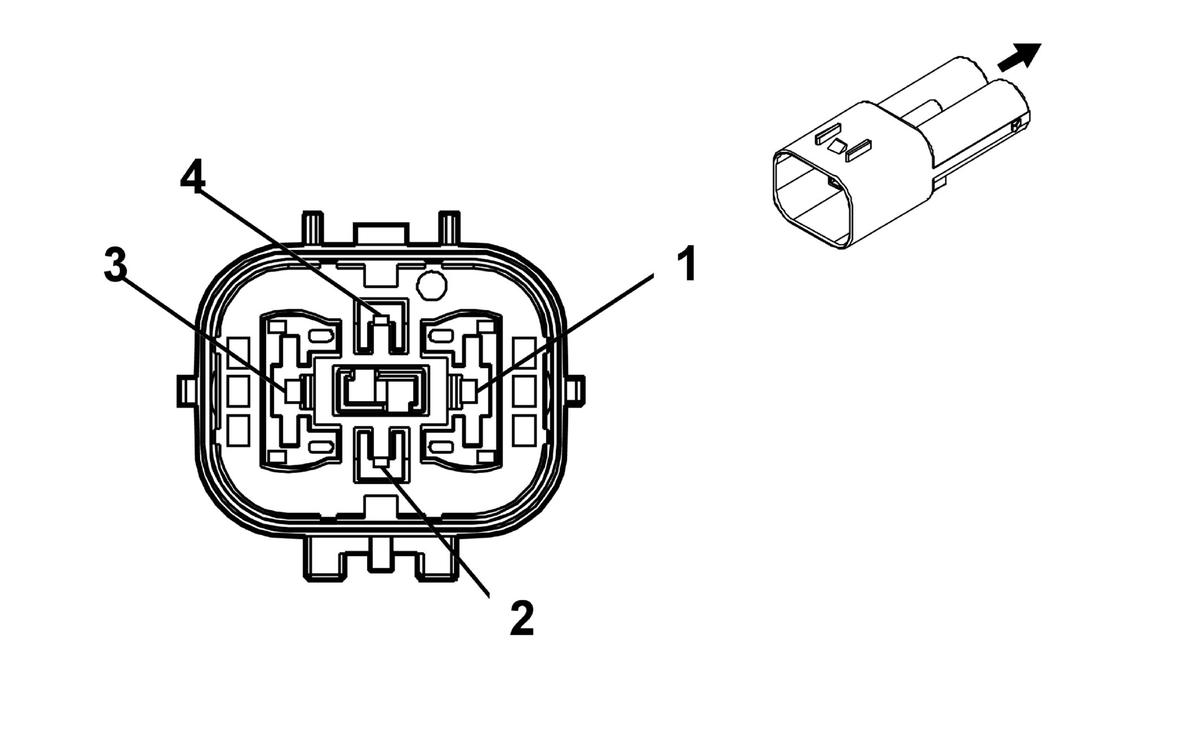

X100 Battery Negative Harness to Power Steering Harness
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Battery Cable Negative
- OEM Connector: 13514495
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 1.2, 9.5 MCON Series (BK)
|
Connector Part Information
- Harness Type: Power Steering
- OEM Connector: 2-2286733-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M 1.2, 9.5 MCON Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-21 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| III |
Not Required |
J-35616-3 (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
10 |
RD/VT |
842 |
I |
- |
Battery Positive Voltage |
1 |
10 |
RD/VT |
842 |
II |
- |
| 2 |
10 |
BK |
1050 |
I |
- |
Ground |
2 |
10 |
BK |
1050 |
III |
- |
| 3 - 4 |
- |
- |
- |
- |
- |
Not Occupied |
3 - 4 |
- |
- |
- |
- |
- |
