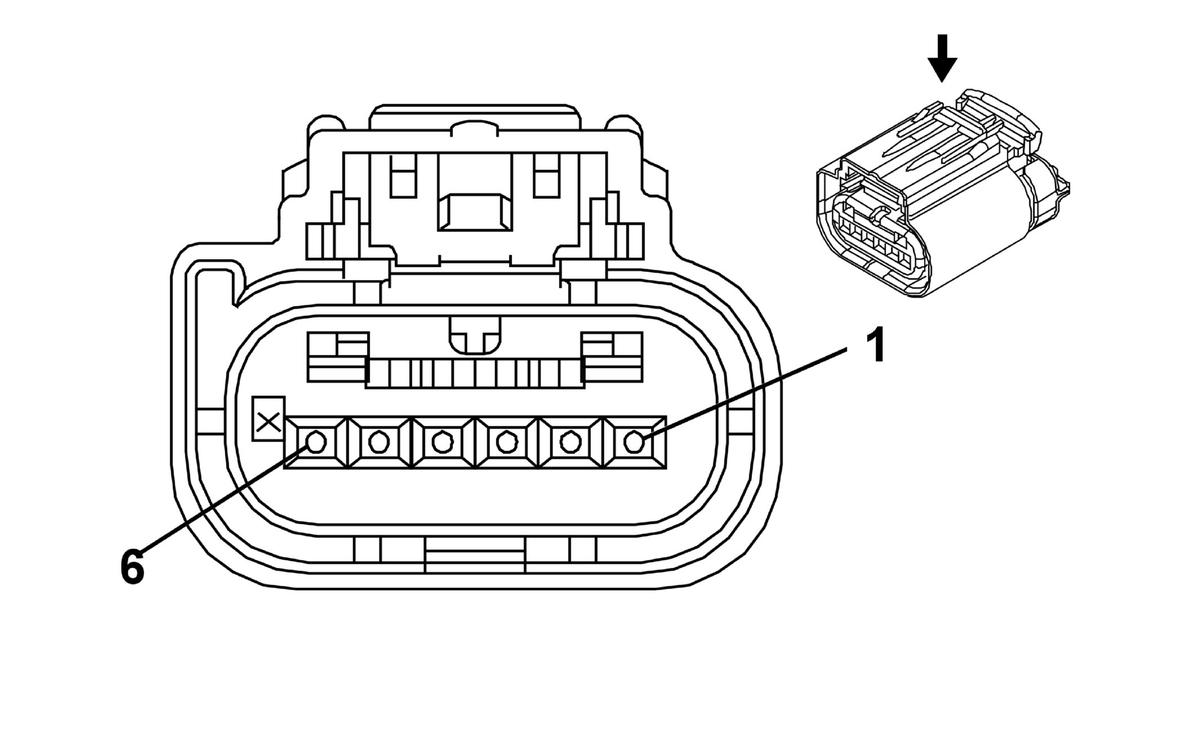

Q85 Cooling Fan Clutch (LWN)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Cooling Fan Harness
- OEM Connector: 1438153-6
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 0.64 GET Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.5 |
WH/GN |
2368 |
Cooling Fan Control Signal |
I |
- |
| 3 |
0.5 |
GY/GN |
2365 |
Cooling Fan Speed 5V Reference |
I |
- |
| 4 |
0.5 |
GY/VT |
2364 |
Cooling Fan Speed Signal |
I |
- |
| 5 |
0.5 |
BK/GN |
6141 |
Cooling Fan Speed Low Reference |
I |
- |
| 6 |
0.5 |
BK/BK |
550 |
Ground |
I |
- |
