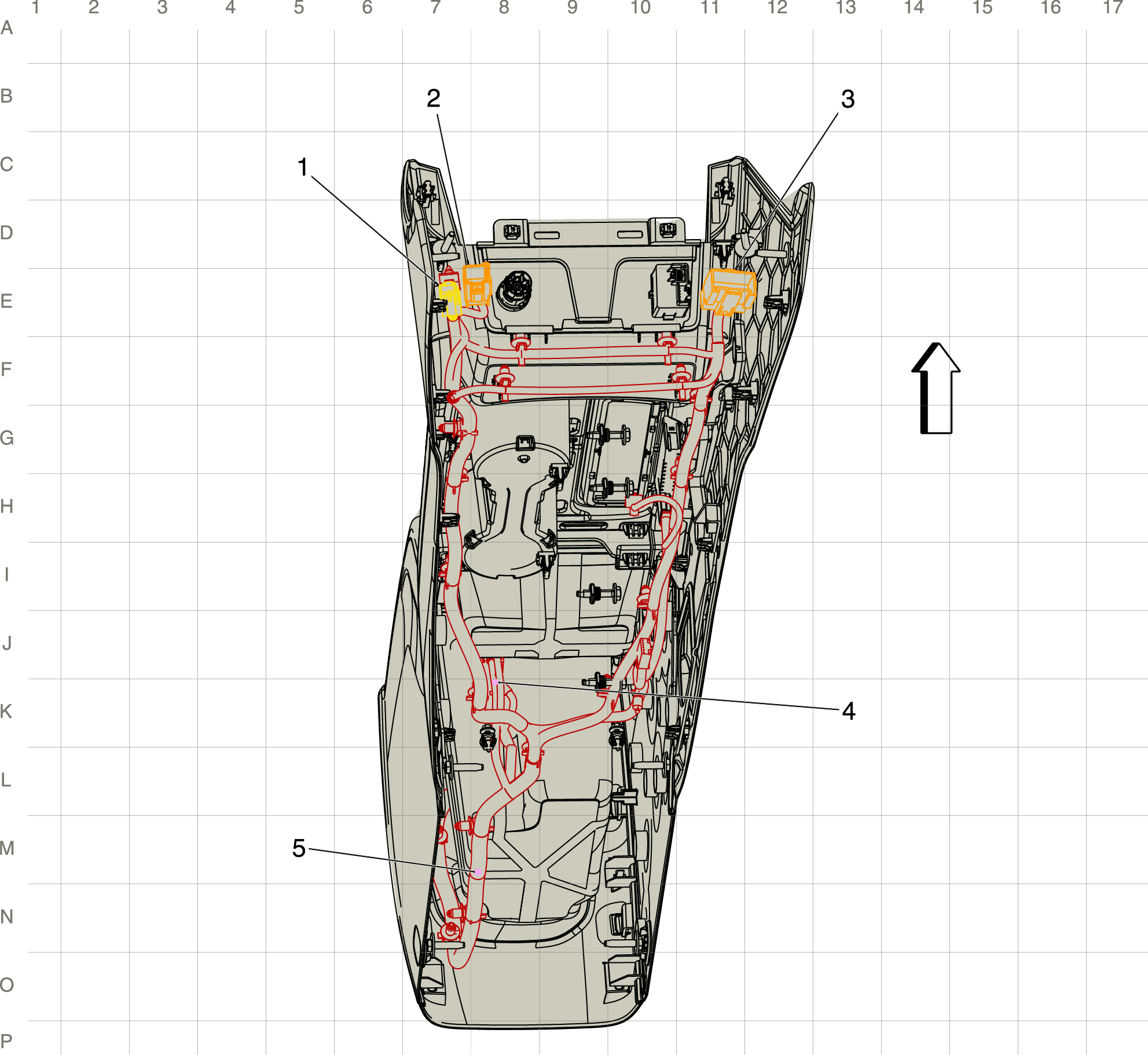

Center Console Harness Routing

GM3940242Courtesy of GENERAL MOTORS COMPANY
Items
1 X302 Floor Console USB Harness to Instrument Panel USB Harness X302 Instrument Panel Harness to Floor Console Harness (IO5/IO6)X302 Instrument Panel Harness to Floor Console Harness (IOB+N8D)
2 X306 Instrument Panel Harness to Floor Console Harness (8 cavities) (MYB) X306 Instrument Panel Harness to Floor Console Harness
3 X305 Instrument Panel Harness to Floor Console Harness (14 cavities) X305 Instrument Panel Harness to Floor Console Harness
4 J304 Floor Console Harness (IO3 with N8D)
5 J305 Floor Console Harness
