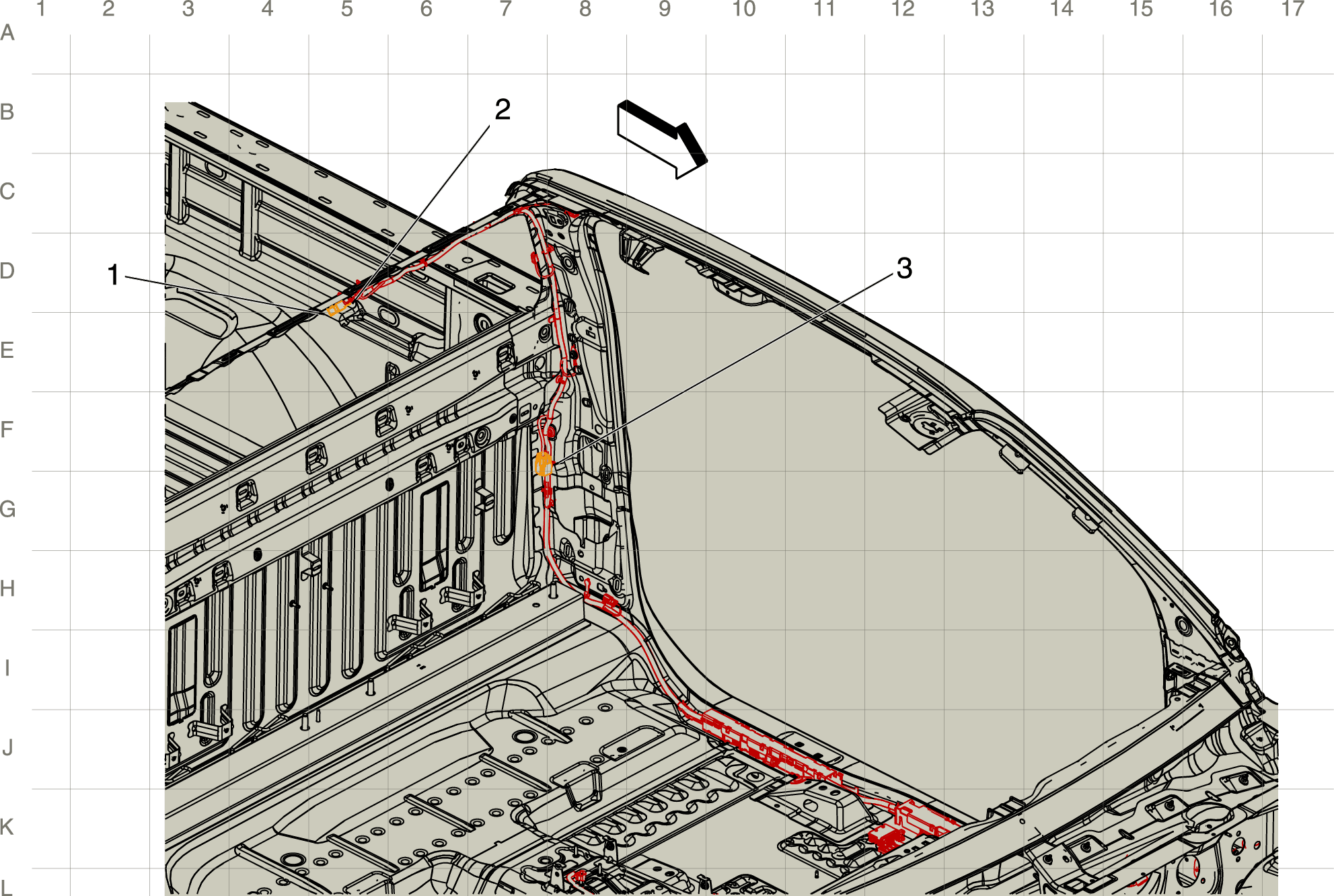

Body Harness Routing - Left Rear of Passenger Compartment (Extended Cab)
| Items |
|---|
| 1 X301 Headliner Harness to Body Harness (22 cavities) X301 Headliner Harness to Body Harness |
| 2 X303 Body Harness to CHMSL Harness (3 cavities) X303 Body Harness to Center High Mounted Stop Lamp Harness |
| 3 X700 Left Rear Door Harness to Body Harness (12 cavities) X700 Left Rear Door Harness to Body Harness (Extended Cab) |
