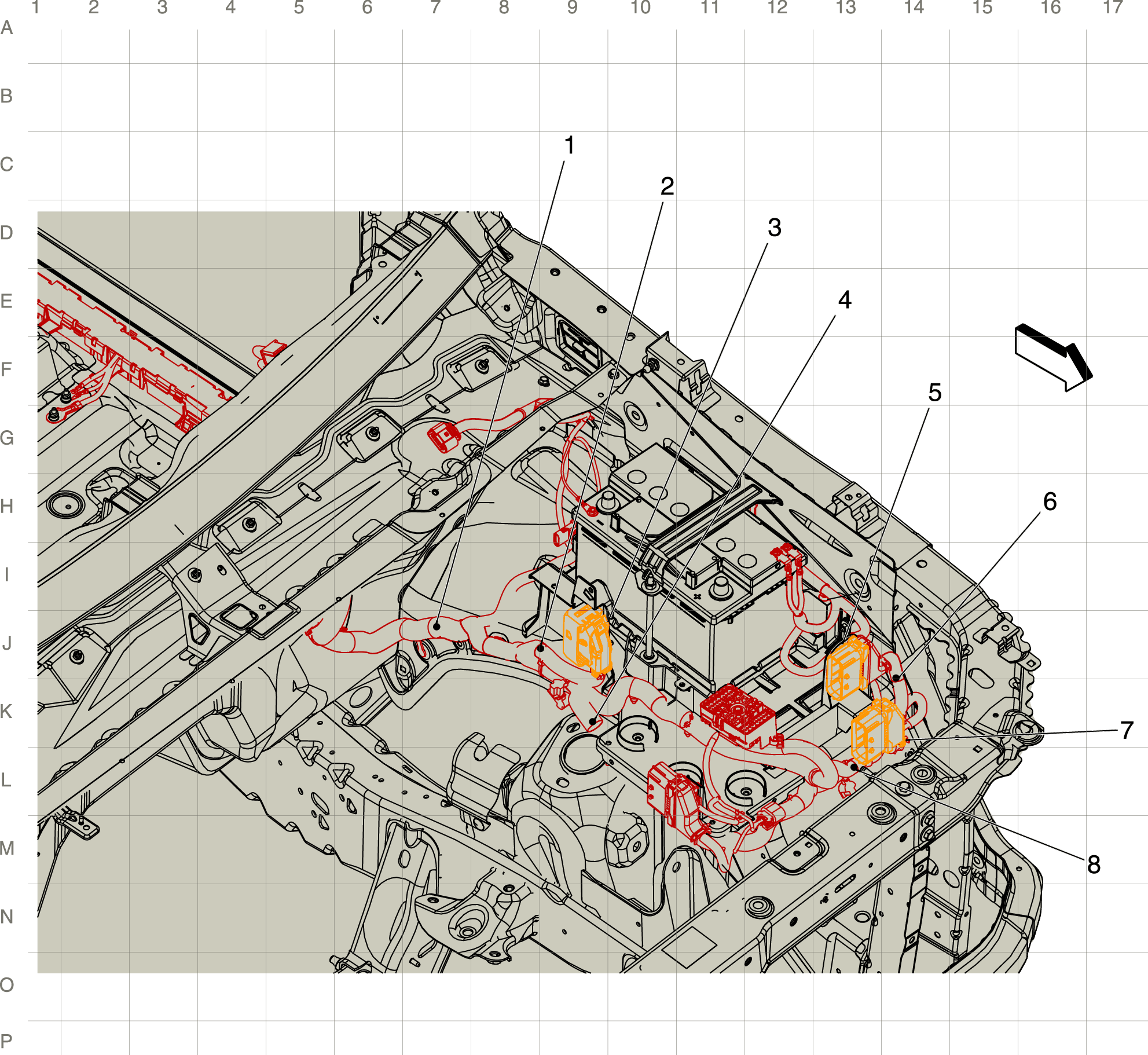

Body Harness Routing - Left Engine Compartment (LWN)
| Items |
|---|
| 1 J103 Body Harness |
| 2 J102 Body Harness |
| 3 X106 Body Harness to Chassis Harness (48 cavities) X106 Body Harness to Chassis Harness |
| 4 J123 Body Harness |
| 5 X101 Engine Harness to Body Harness (48 cavities) X101 Engine Harness to Body Harness |
| 6 J101 Body Harness |
| 7 X102 Forward Lamp Harness to Body Harness (48 cavities) X102 Forward Lamp Harness to Body Harness |
| 8 J100 Body Harness |
