Underbody Components (LWN) (5 of 6)

Underbody Components (LWN) (5 of 6)

Items
1. E52 Reductant Line Heater (LWN) E52 Reductant Line Heater (LWN)
2. K115 Reductant Control Module (LWN) K115 Reductant Control Module X1 (LWN)K115 Reductant Control Module X2 (LWN)
3. A39 Reductant Tank (LWN) A38 Reductant Pump and Sensor Assembly (LWN)
4. B213 Reductant Level Sensor (LWN)
5. E53 Reductant Tank Heater (LWN)

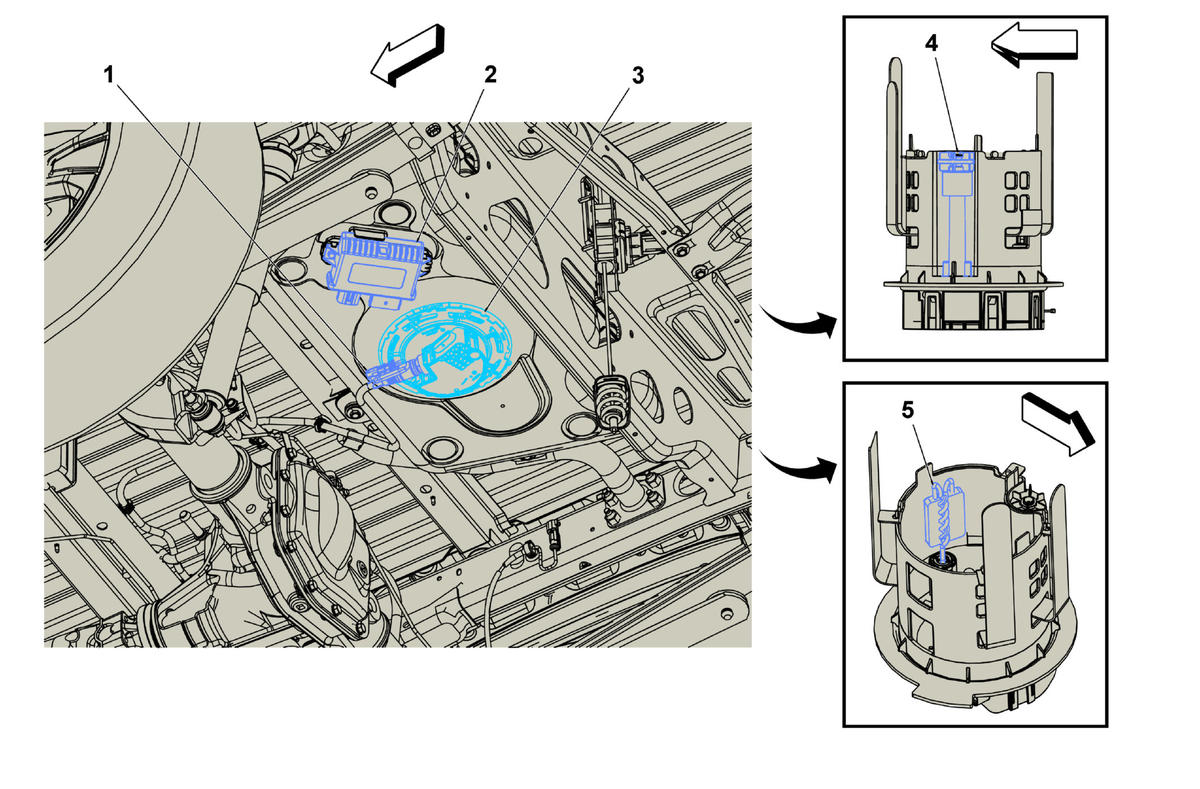

Fig 1: Underbody Components (LWN) (5 of 6)
GM4802510Courtesy of GENERAL MOTORS COMPANY
