Underbody Components (LWN) (4 of 6)

Underbody Components (LWN) (4 of 6)

Items
1. B136 Exhaust Particulate Matter Sensor (LWN) B136 Exhaust Particulate Matter Sensor
2. B154 Diesel Particulate Filter Exhaust Differential Pressure Sensor (LWN) B154 Diesel Particulate Filter Exhaust Differential Pressure Sensor

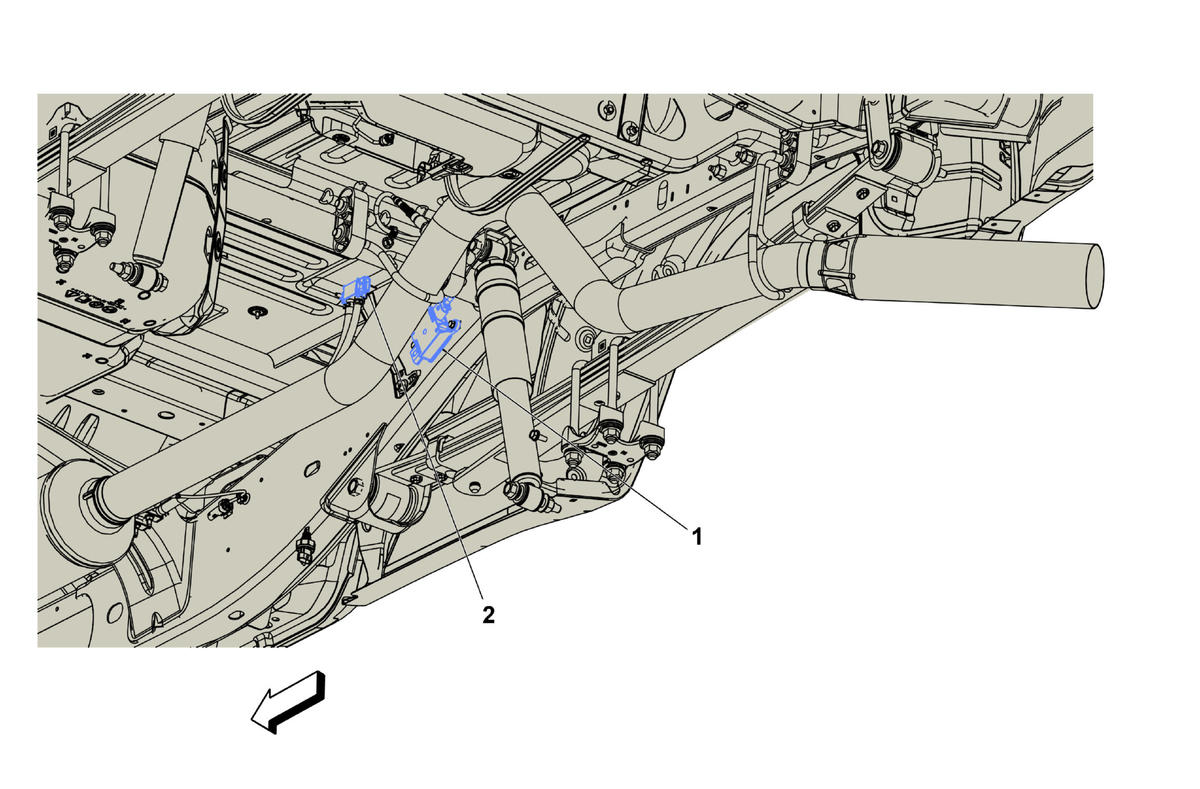

Fig 1: Underbody Components (LWN) (4 of 6)
GM4122356Courtesy of GENERAL MOTORS COMPANY
