Underbody Components (LWN) (3 of 6)

Underbody Components (LWN) (3 of 6)

Items
1. B116 Water in Fuel Sensor (LWN) B116 Water in Fuel Sensor
2. E11 Fuel Heater (LWN) E11 Fuel Heater

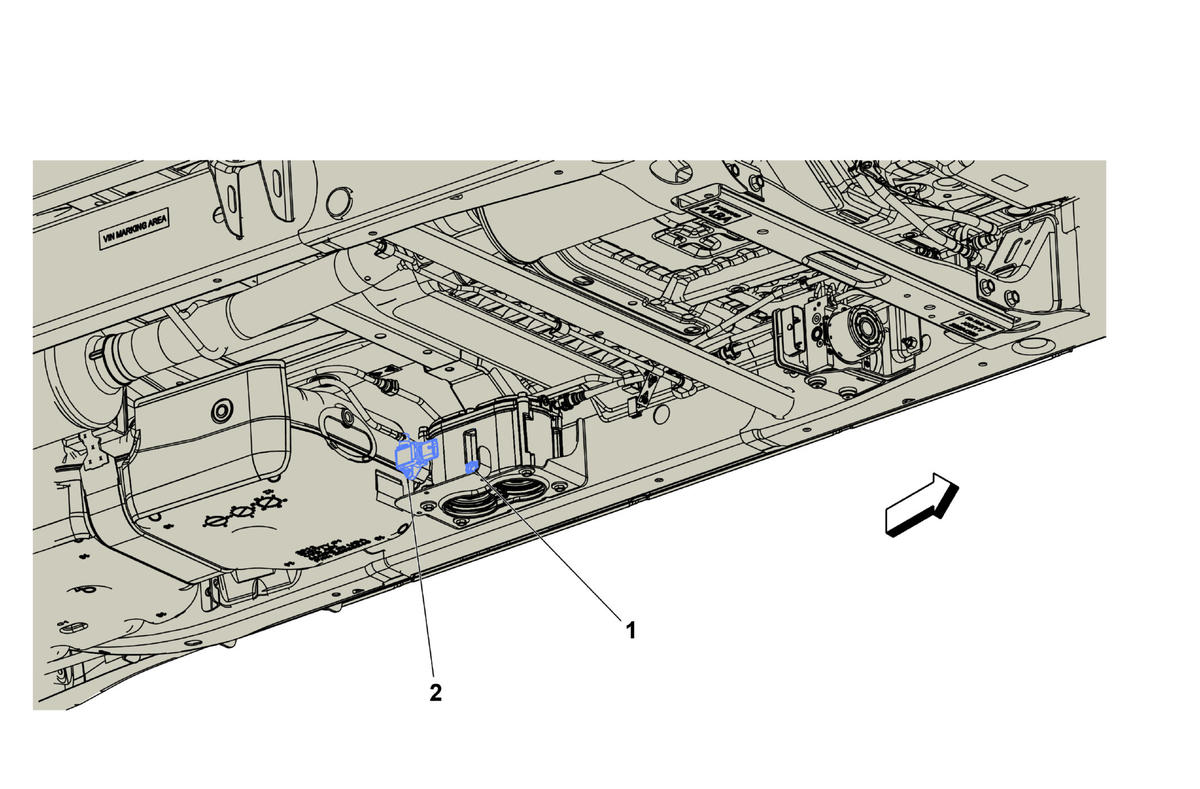

Fig 1: Underbody Components (LWN) (3 of 6)
GM4122352Courtesy of GENERAL MOTORS COMPANY
