Underbody Components (1 of 2)

Underbody Components (1 of 2)

Items
1. K43 Power Steering Control Module K43 Power Steering Control Module X1K43 Power Steering Control Module X2K43 Power Steering Control Module X3
2. M26 Front Axle Engagement Actuator (NQ6/NQ7) M26 Front Axle Engagement Actuator
3. M38 Power Steering Motor

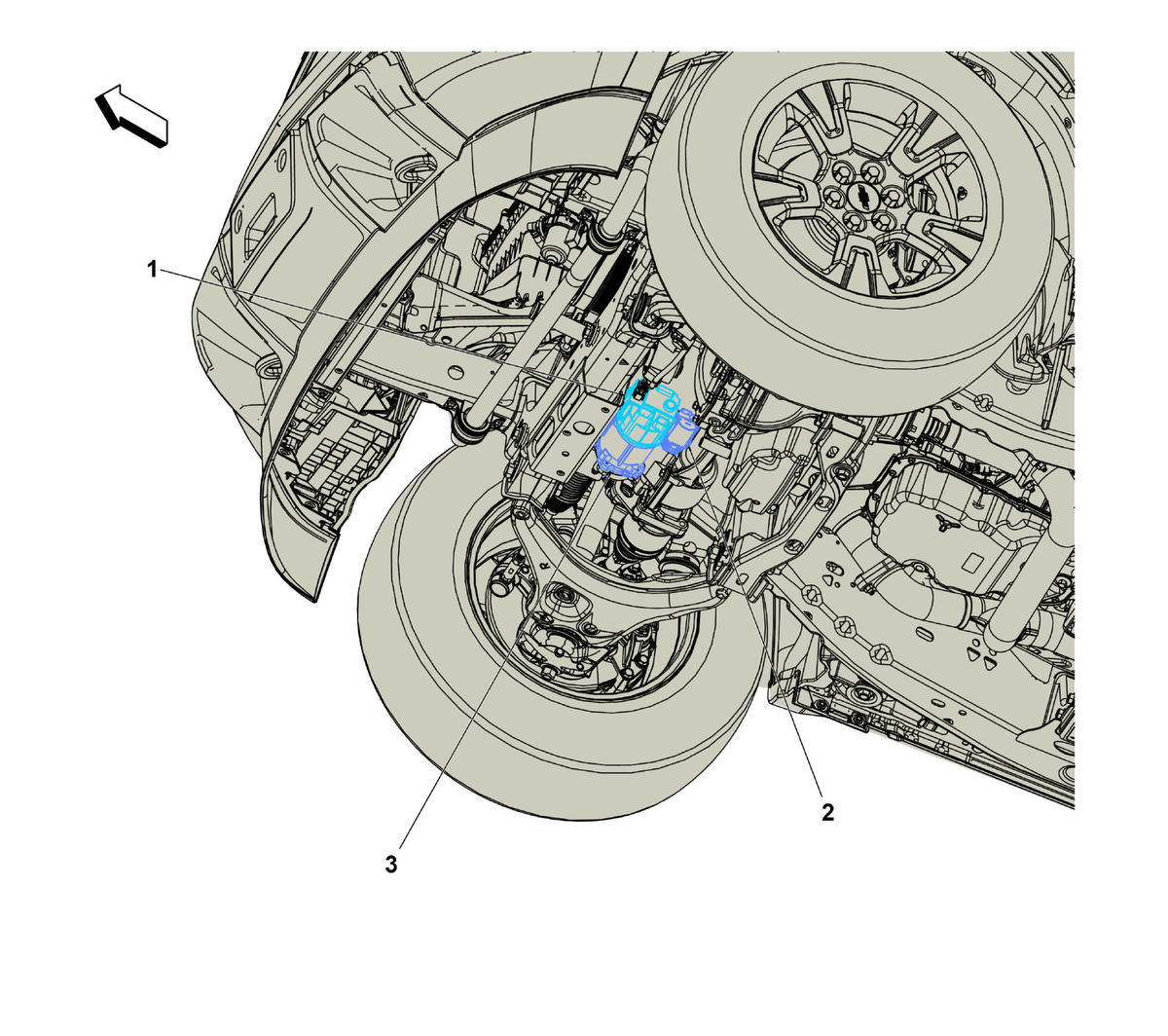

Fig 1: Underbody Components (1 of 2)
GM3914218Courtesy of GENERAL MOTORS COMPANY
