Chassis Underbody Components (Extended Cab)

Chassis Underbody Components (Extended Cab)

Items
1. K17 Electronic Brake Control Module K17 Electronic Brake Control Module
2. B47 Fuel Pressure Sensor (LCV/LGZ) B47 Fuel Pressure Sensor
3. R6A Terminating Resistor - High Speed Bus R6A Terminating Resistor - High Speed Bus

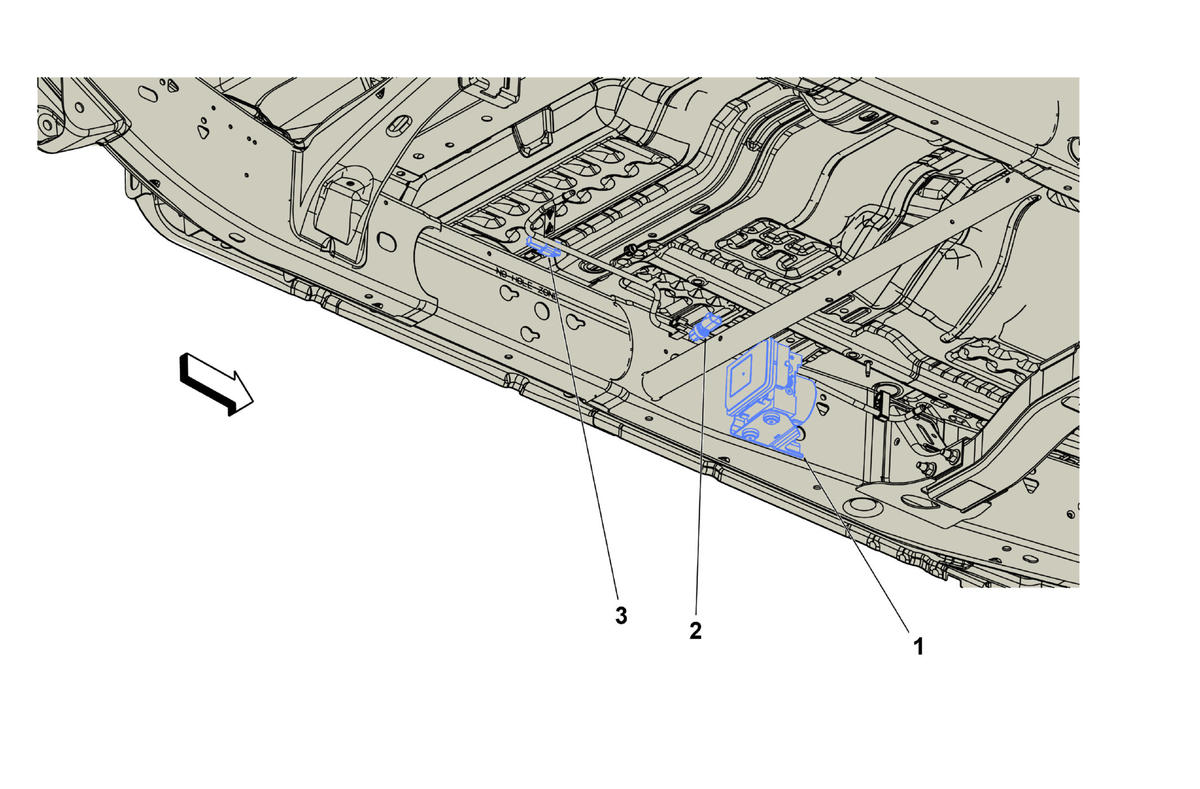

Fig 1: Chassis Underbody Components (Extended Cab)
GM3924283Courtesy of GENERAL MOTORS COMPANY
