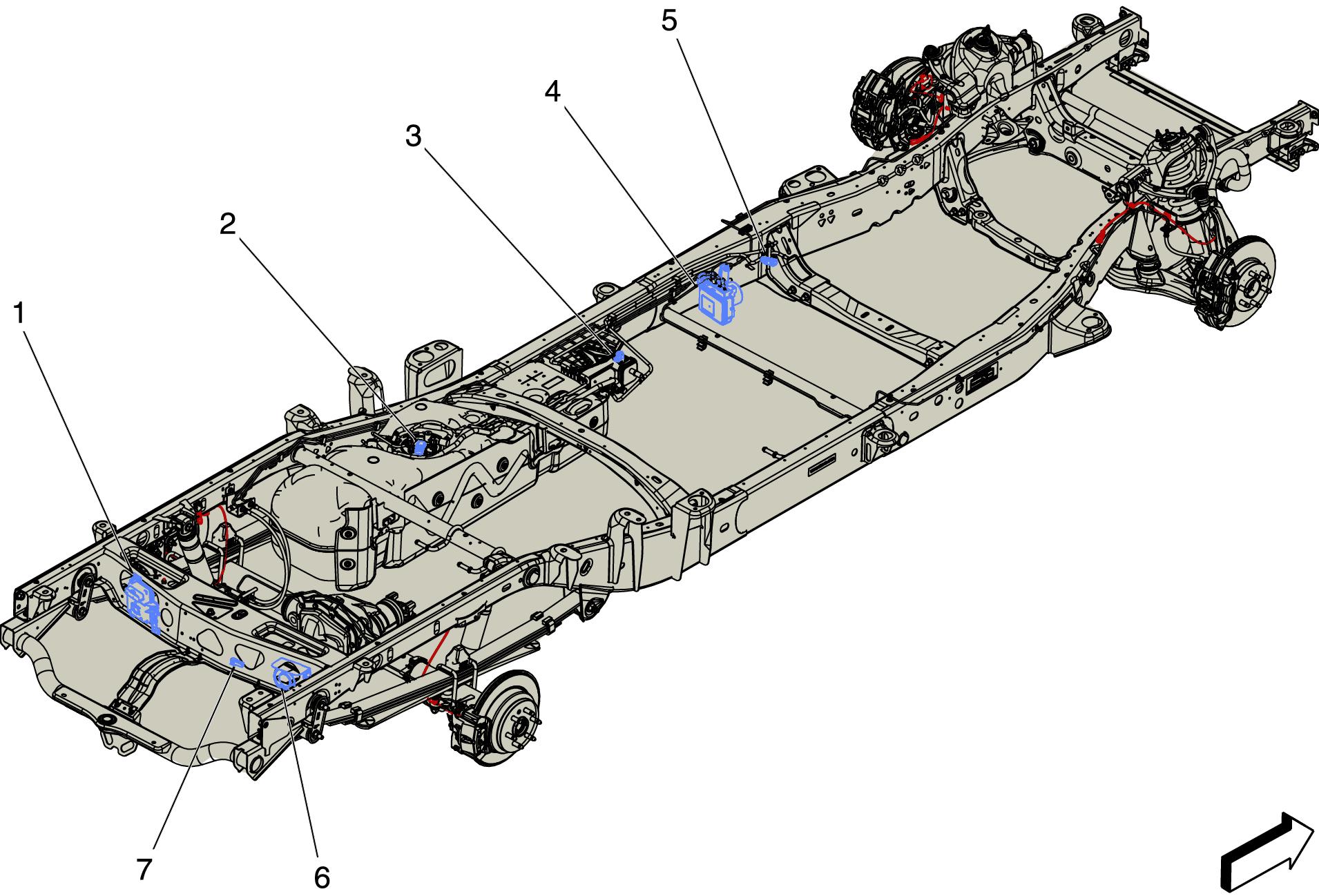

Chassis Components (Crew Cab)
Chassis Components (Crew Cab)
| Items |
|---|
| 1. K38 Chassis Control Module K38 Chassis Control Module |
| 2. B150 Fuel Tank Pressure Sensor (LCV/LGZ) B150 Fuel Tank Pressure Sensor |
| 3. Q13 Evaporative Emission Vent Solenoid Valve Q13 Evaporative Emission Vent Solenoid Valve |
| 4. K17 Electronic Brake Control Module K17 Electronic Brake Control Module |
| 5. B47 Fuel Pressure Sensor (LCV/LGZ) B47 Fuel Pressure Sensor |
| 6. P3 Backup Alarm (8S3) P3 Backup Alarm |
| 7. R6A Terminating Resistor - High Speed Bus R6A Terminating Resistor - High Speed Bus |
