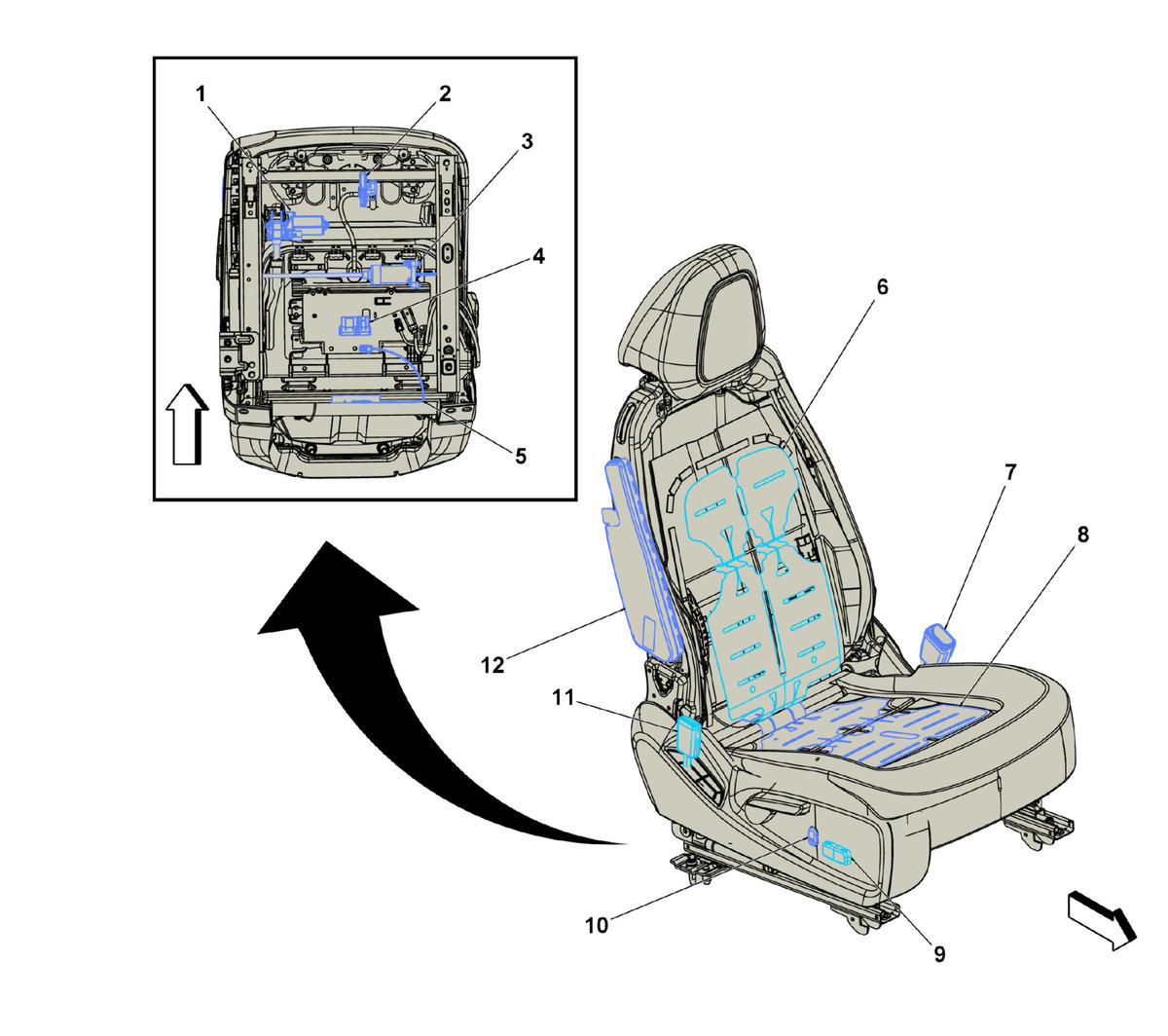

Passenger Seat Components
Passenger Seat Components
| Items |
|---|
| 1. M55P Seat Rear Vertical Motor - Passenger (AAQ) M55P Seat Rear Vertical Motor - Passenger (AAQ) |
| 2. K85 Passenger Presence Module K85 Passenger Presence Module |
| 3. M51P Seat Horizontal Motor - Passenger (AAQ) M51P Seat Horizontal Motor - Passenger (AAQ) |
| 4. K29 Seat Heating Control Module (KA1) K29 Seat Heating Control Module X1 (KA1)K29 Seat Heating Control Module X2 (KA1) |
| 5. E14D Seat Heating Element - Passenger Cushion (KA1) E14D Seat Heating Element - Passenger Cushion (KA1) |
| 6. E14C Seat Heating Element - Passenger Back (KA1) E14C Seat Heating Element - Passenger Back (KA1) |
| 7. B88P Seat Belt Switch - Passenger |
| 8. E14D Seat Heating Element - Passenger Cushion (KA1) E14D Seat Heating Element - Passenger Cushion (KA1) |
| 9. S64P Seat Adjuster Switch - Passenger (AAQ) S64P Seat Adjuster Switch - Passenger (AAQ)S65P Seat Lumbar Support Switch - Passenger (AT9) |
| 10. S65P S65P Seat Lumbar Support Switch - Passenger |
| 11. F113P Seat Belt Anchor Pretensioner - Passenger F113P Seat Belt Anchor Pretensioner - Passenger |
| 12. F106P Seat Side Air Bag - Passenger F106P Seat Side Air Bag - Passenger |
