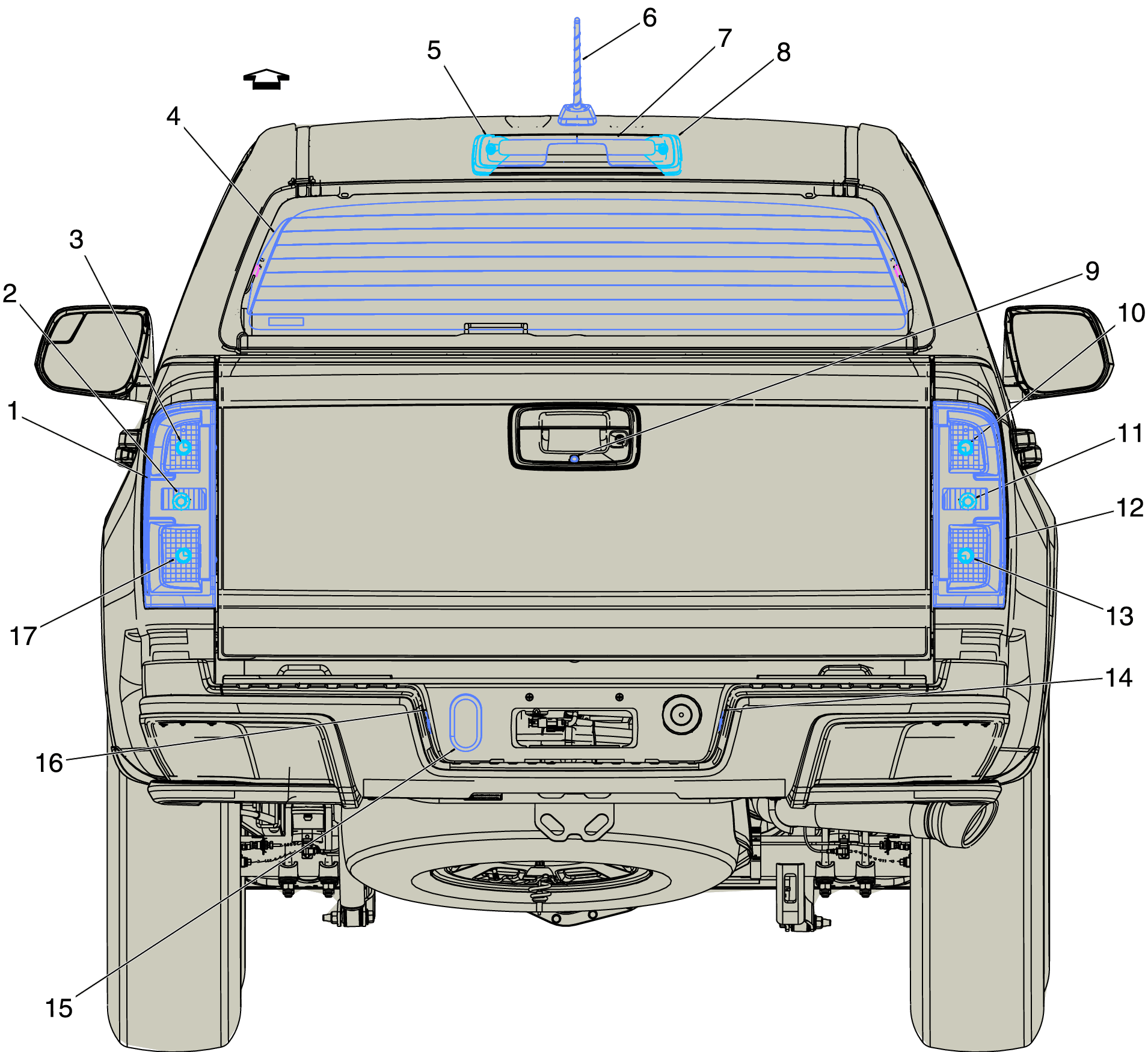

Rear of Vehicle Components
Rear of Vehicle Components
| Items |
|---|
| 1. E42L Tail Lamp Assembly - Left |
| 2. E5A Backup Lamp - Left E5A Backup Lamp - Left |
| 3. E5AG Tail/Stop and Turn Signal Lamp - Left Upper E5AG Tail/Stop and Turn Signal Lamp - Left Upper |
| 4. E18 Rear Defogger Grid (C49) E18 Rear Defogger Grid X1E18 Rear Defogger Grid X2 |
| 5. E33L Cargo Lamp - Left E33L Cargo Lamp - Left (S0Y) |
| 6. T4G Cellular Phone, Navigation, and Digital Radio Antenna (UE1) T4G Cellular Phone, Navigation, and Digital Radio Antenna (Crew Cab) |
| 7. E6 Center High Mounted Stop Lamp |
| 8. E33R Cargo Lamp - Right E33R Cargo Lamp - Right (S0Y) |
| 9. B87 Rearview Camera (UVC) B87 Rearview Camera |
| 10. E5AH Tail/Stop and Turn Signal Lamp - Right Upper E5AH Tail/Stop and Turn Signal Lamp - Right Upper |
| 11. E5B Backup Lamp - Right E5B Backup Lamp - Right |
| 12. E42R Tail Lamp Assembly - Right |
| 13. E5V Tail/Stop and Turn Signal Lamp - Right Lower E5V Tail/Stop and Turn Signal Lamp - Right Lower |
| 14. E7R License Plate Lamp - Right E7R License Plate Lamp - Right |
| 15. X88 Trailer Connector (Z82) X88 Trailer Connector |
| 16. E7L License Plate Lamp - Left E7L License Plate Lamp - Left |
| 17. E5U Tail/Stop and Turn Signal Lamp - Left Lower E5U Tail/Stop and Turn Signal Lamp - Left Lower |
