Electrical Component Locator - Ground Views
>>
Ground Views
>>
G301 and G303
G301 and G303
G301 and G303
Items
1. G303 Body Harness
2. G301 Body harness

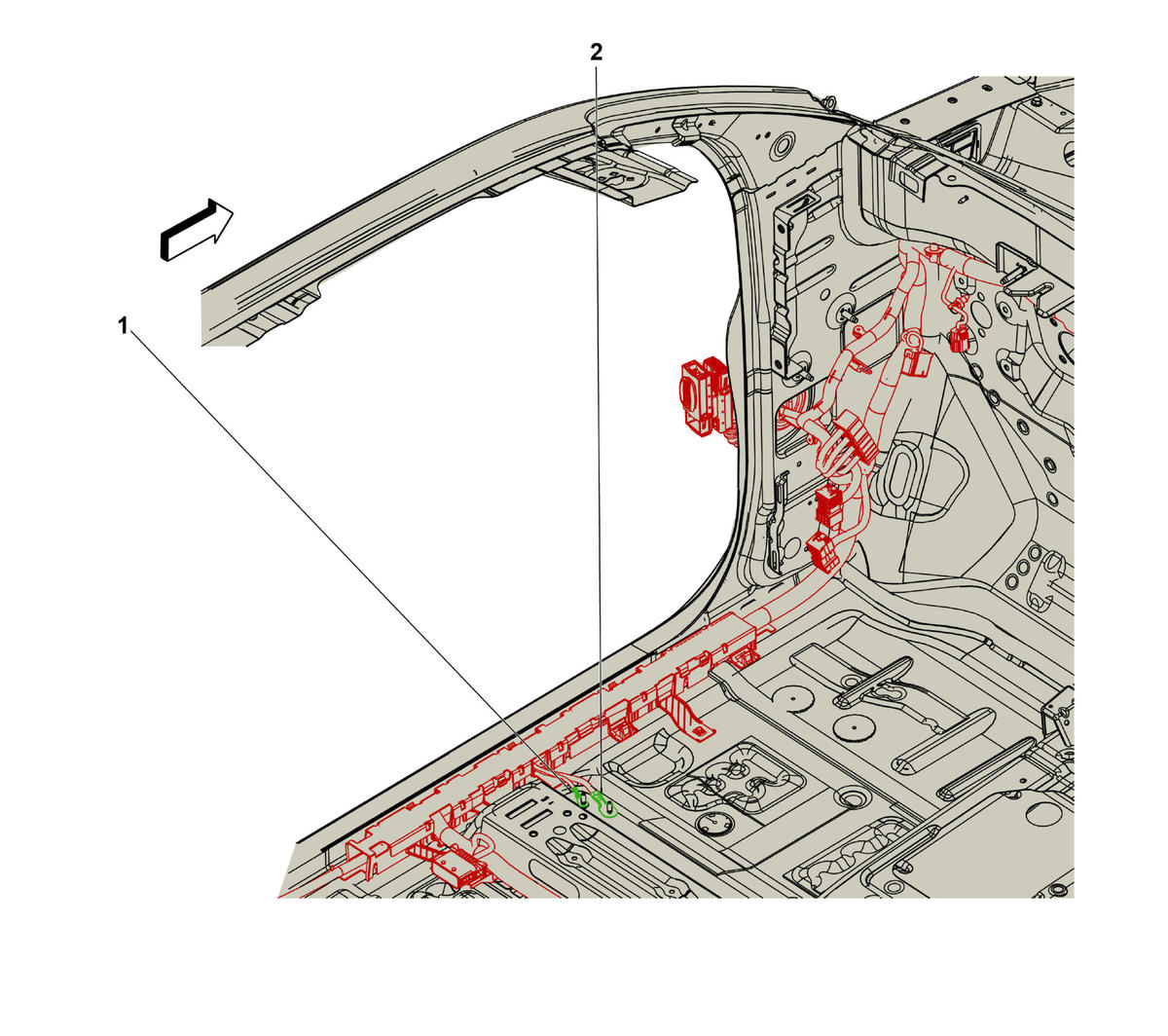

Fig 1: G301 and G303
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
