Electrical Component Locator - Ground Views
>>
Ground Views
>>
G103 (LWN), G105 (LCV/LGZ)
G103 (LWN), G105 (LCV/LGZ)
G103 (LWN), G105 (LCV/LGZ)
Items
1. G105 Forward Lamp Harness
2. G103 Forward Lamp Harness

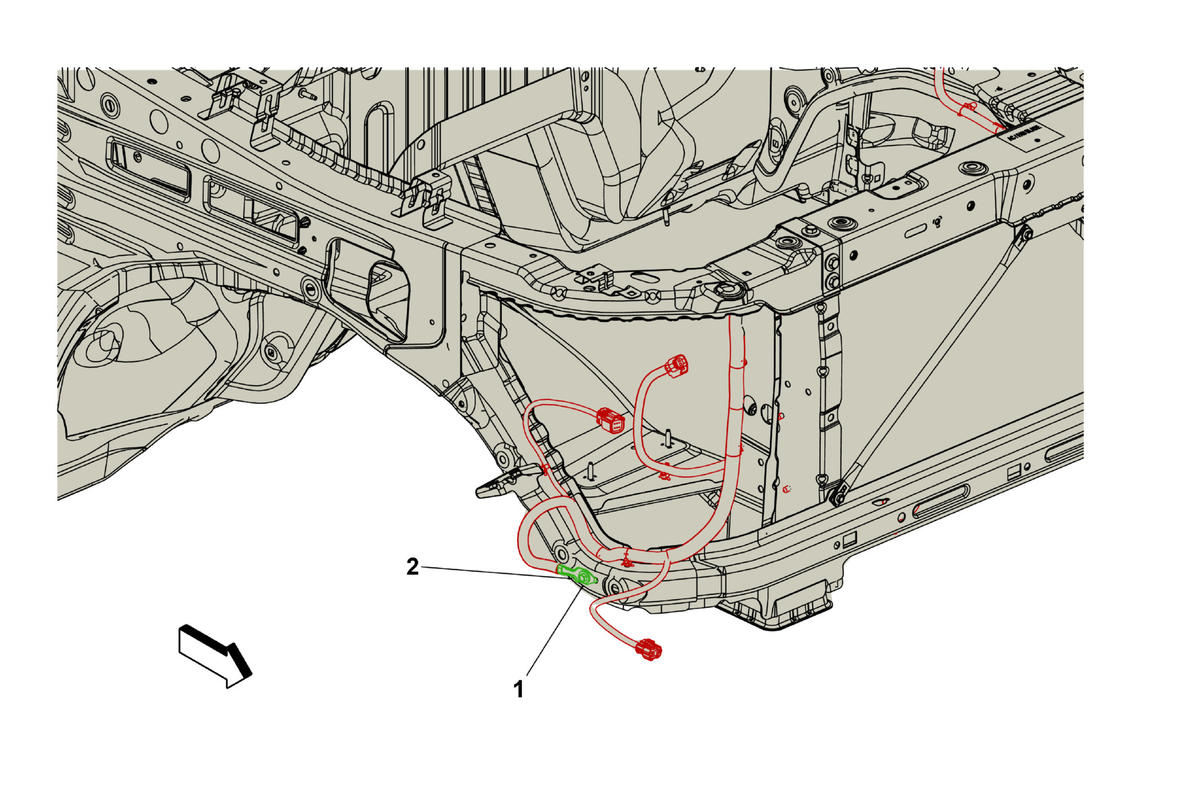

Fig 1: G103 (LWN), G105 (LCV/LGZ)
Courtesy of GENERAL MOTORS COMPANY
