Electrical Component Locator - Ground Views
>>
Ground Views
>>
G103 (LCV/LGZ), G105 (LWN)
G103 (LCV/LGZ), G105 (LWN)
G103 (LCV/LGZ), G105 (LWN)
Items
1. G103 Forward Lamp Harness
2. G105 Forward Lamp Harness

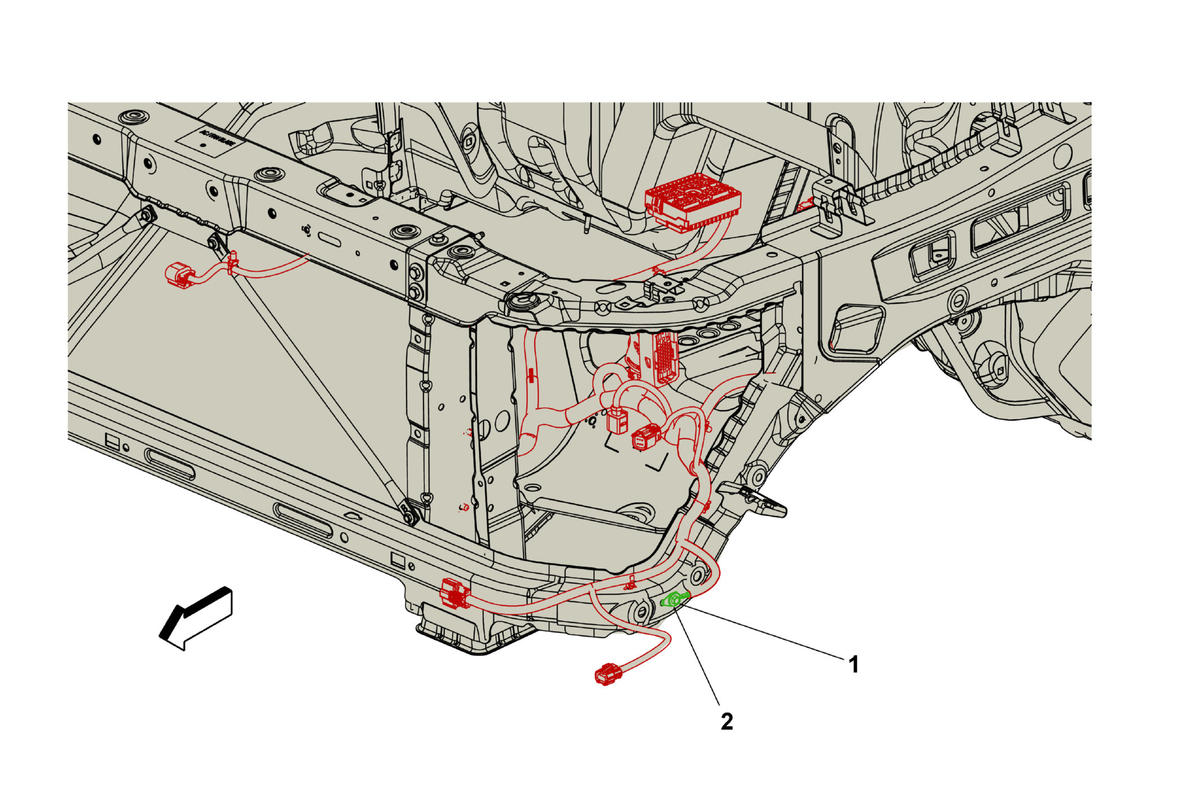

Fig 1: G103 (LCV/LGZ), G105 (LWN)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
