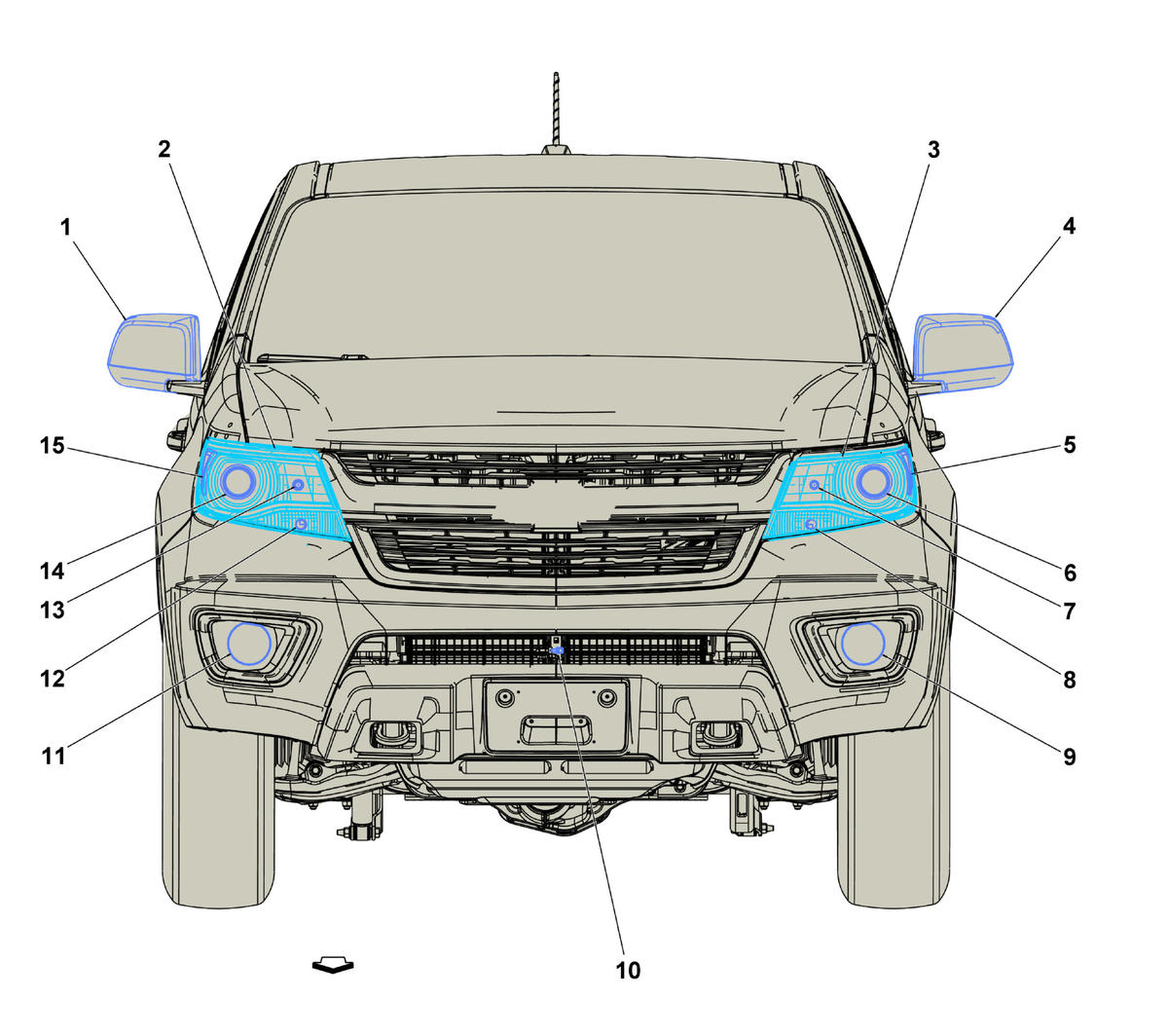

Front of Vehicle Components (Chevrolet/X88)
Front of Vehicle Components (Chevrolet/X88)
| Items | Callout |
|---|---|
| A9B Outside Rearview Mirror - Passenger | 1 |
| E13RA Headlamp Assembly - Right | 2 |
| E13LA Headlamp Assembly - Left | 3 |
| A9A Outside Rearview Mirror - Driver | 4 |
| E4J Park Lamp - Left Front (X88) E4J Park Lamp - Left Front | 5 |
| E4G Headlamp - Left Low Beam E4G Headlamp - Left Low Beam | 6 |
| E4E Headlamp - Left High Beam E4E Headlamp - Left High Beam | 7 |
| E4N Park/Turn Signal Lamp - Left E4N Park/Turn Signal Lamp - Left | 8 |
| E29LF Fog Lamp - Left Front (T3U) E29LF Fog Lamp - Left Front | 9 |
| B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor | 10 |
| E29RF Fog Lamp - Right Front (T3U) E29RF Fog Lamp - Right Front | 11 |
| E4P Park/Turn Signal Lamp - Right E4P Park/Turn Signal Lamp - Right | 12 |
| E4F Headlamp - Right High Beam E4F Headlamp - Right High Beam | 13 |
| E4H Headlamp - Right Low Beam E4H Headlamp - Right Low Beam | 14 |
| E4K Park Lamp - Right Front (X88) E4K Park Lamp - Right Front (X88) | 15 |
