Front Seat Belt Anchor Plate Tensioner Cover Replacement

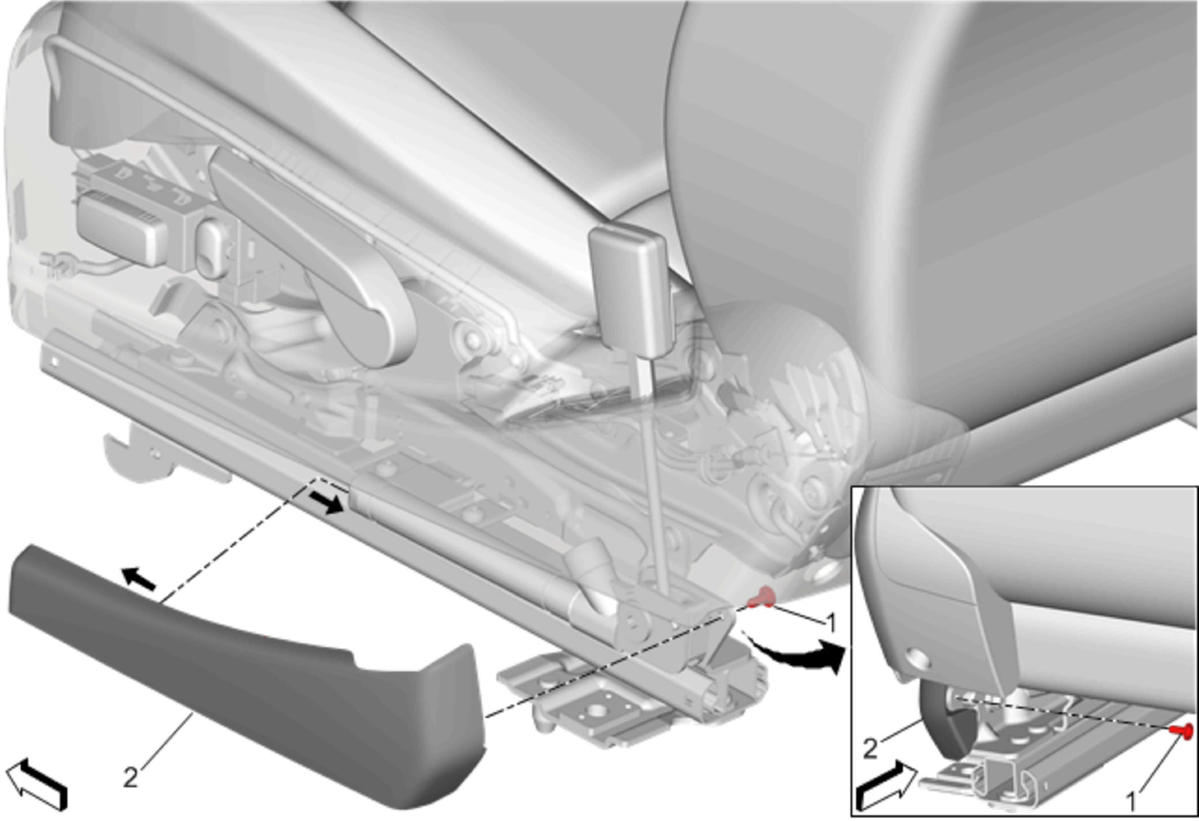

GM3726854
Callout Component Name
1 Front Seat Belt Anchor Plate Tensioner Cover Screw
CAUTION:

Refer to Fastener Caution .
2 Front Seat Belt Anchor Plate Tensioner Cover
CAUTION:

Do not twist the cover during removal. Twisting the cover may cause the component to break.

Procedure

  1. Raise the seat to the highest position to gain access to the tensioner cover.
  2. Slide the finish cover forward off the tensioner rod to remove.
