Rear Side Door Sill Garnish Molding Replacement

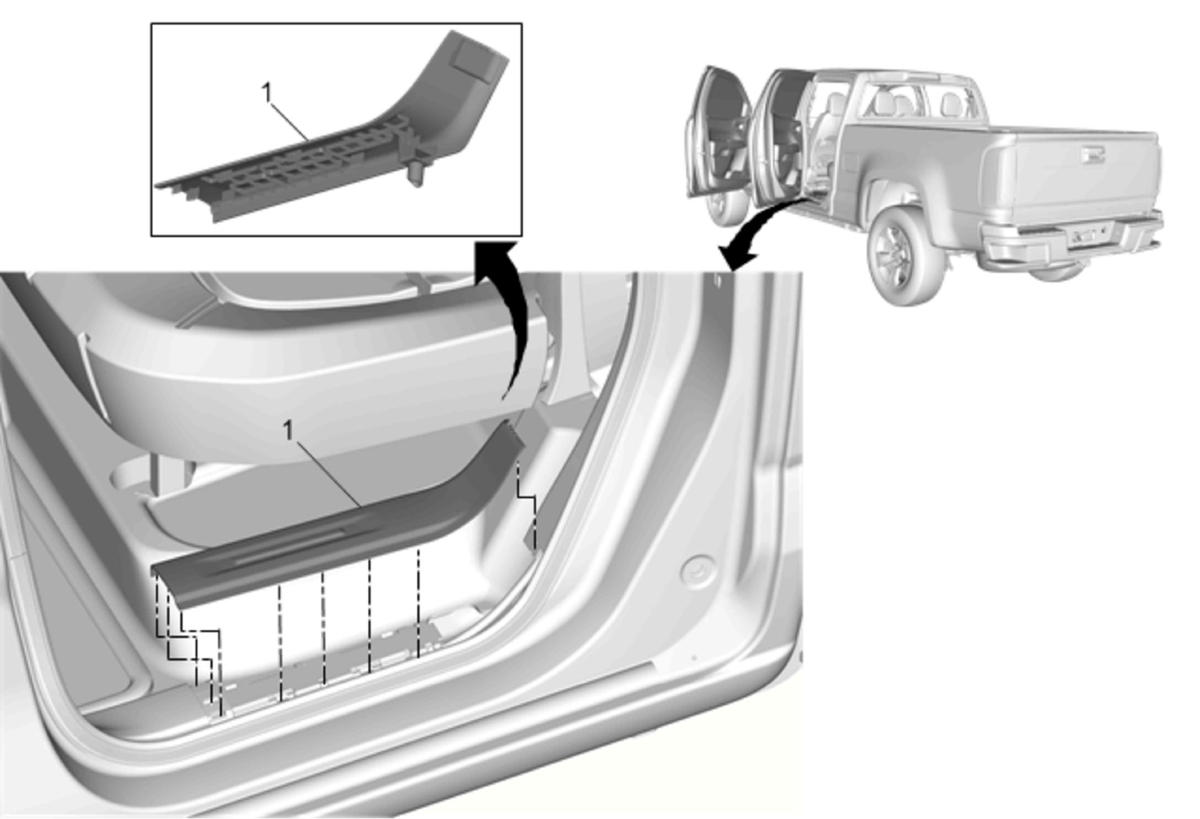

GM3813727
Callout Component Name
1 Rear Side Door Sill Garnish Molding Assembly

Procedure

  1. Starting at the front of the sill garnish molding, pull upward at the B-Pillar joint to disengage sill garnish molding.
  2. Work your way rearward disengaging all of the garnish molding clips then pull forward to disengage from the C-Pillar lower.
