Instrument Panel Accessory Center Trim Plate Replacement

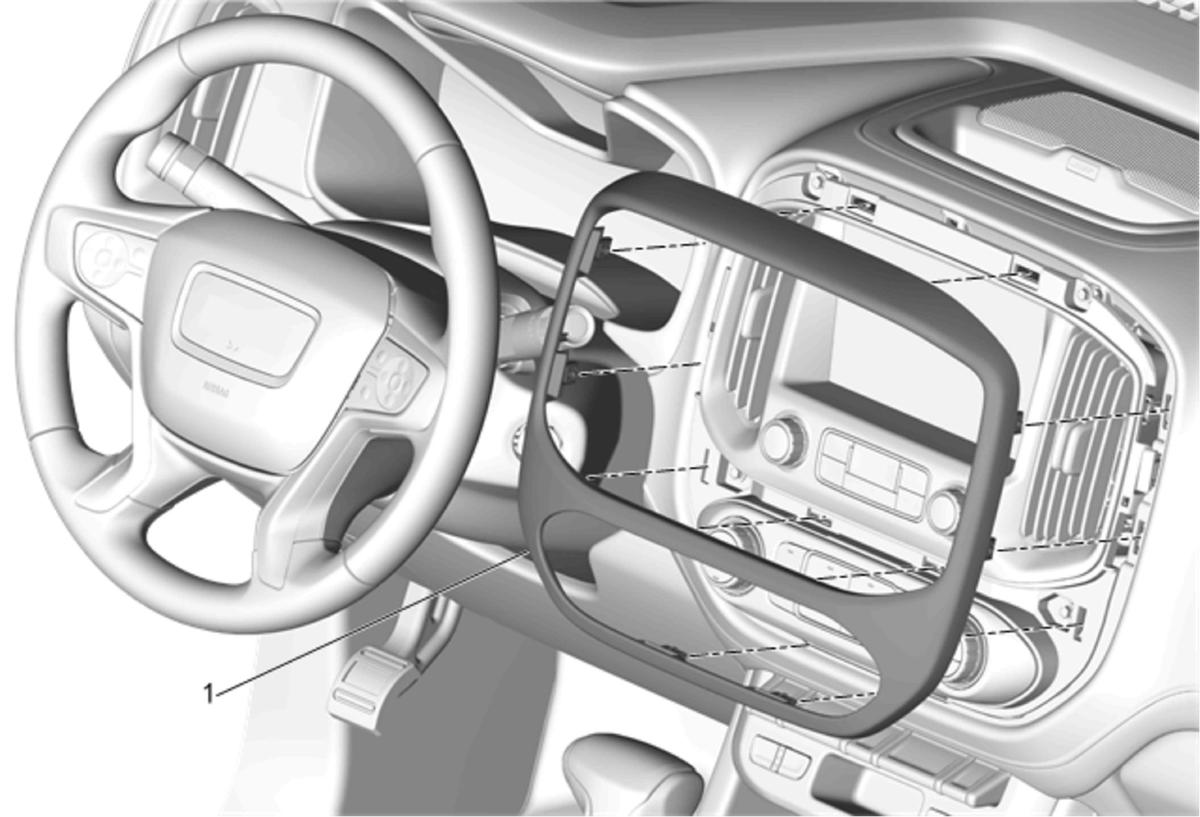

GM3685203
Callout Component Name
1 Instrument Panel Accessory Center Trim Plate
Procedure
Use a flat-bladed plastic trim tool to release the 12 retainers securing the accessory center trim plate to the instrument panel assembly.
