Instrument Panel Accessory Bezel Replacement

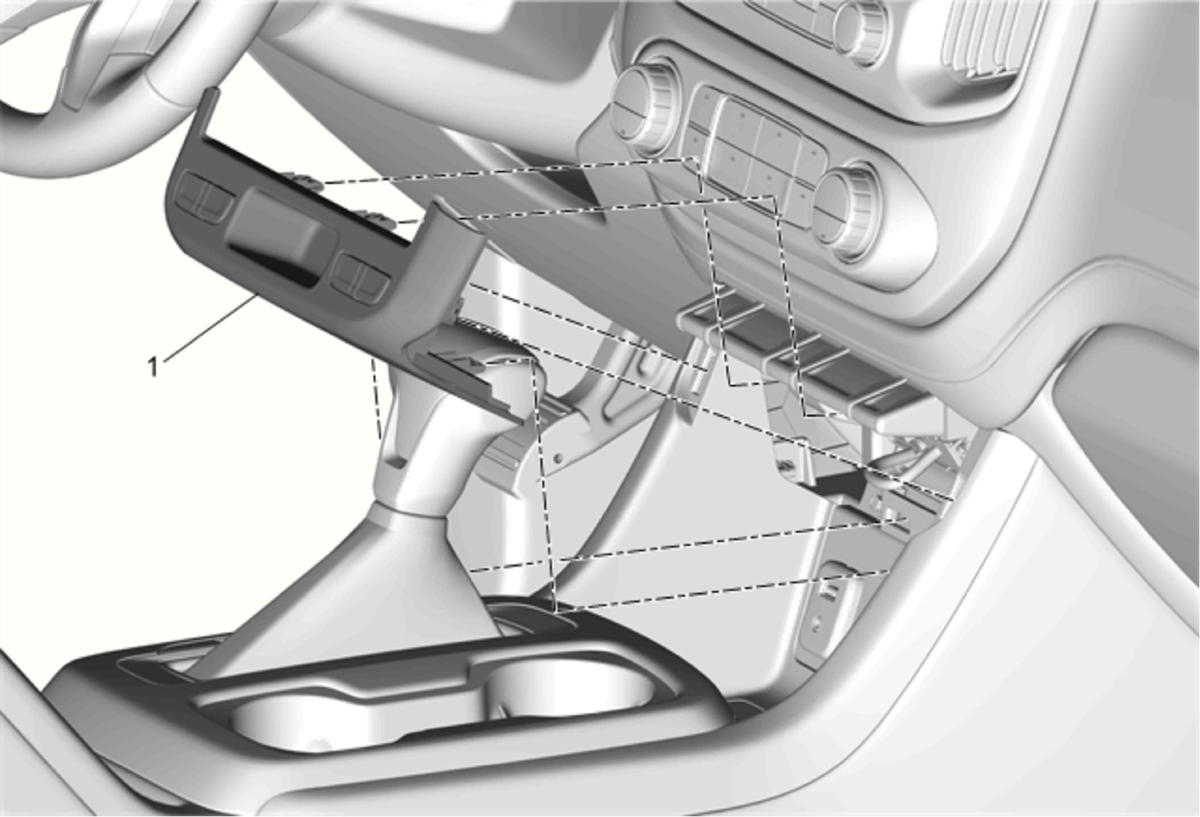

Callout
Component Name
1
Instrument Panel Accessory Bezel
Procedure
Use a flat-bladed plastic trim tool to release the 6 retainers securing the accessory bezel to the instrument panel assembly.
Disconnect the electrical connection, if equipped.
When replacing the accessory bezel, transfer all necessary components.
