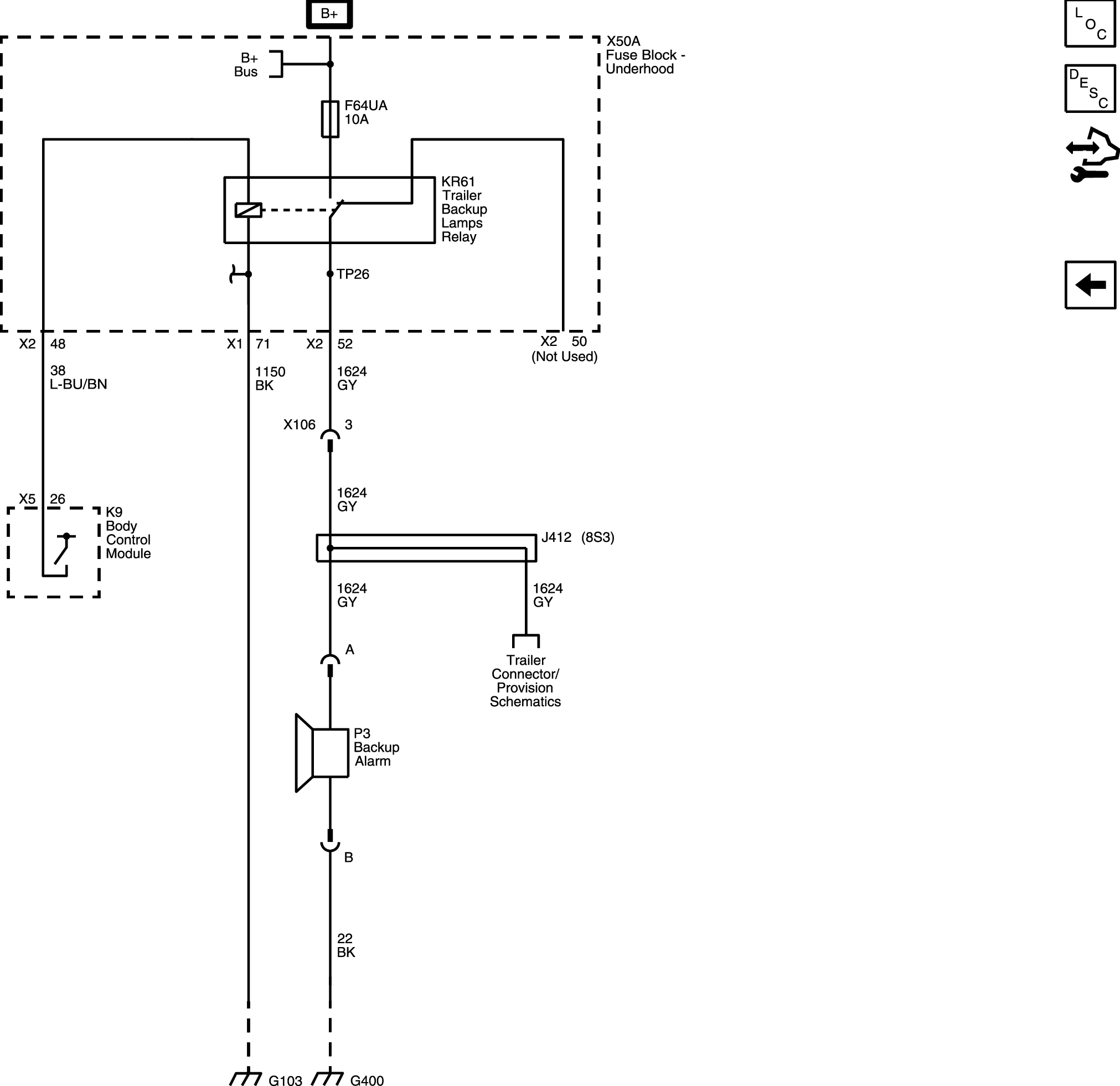

Home >> GMC >> 2018 >> Canyon SL >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel System Displays And Gauges >> Schematic Wiring Diagrams >> Audible Warnings Wiring Schematics >> Backup Alarm (8S3)
