Heater Outlet Hose Replacement (LGX Without Rear Aux HVAC Quick Connector To Tee Connector)

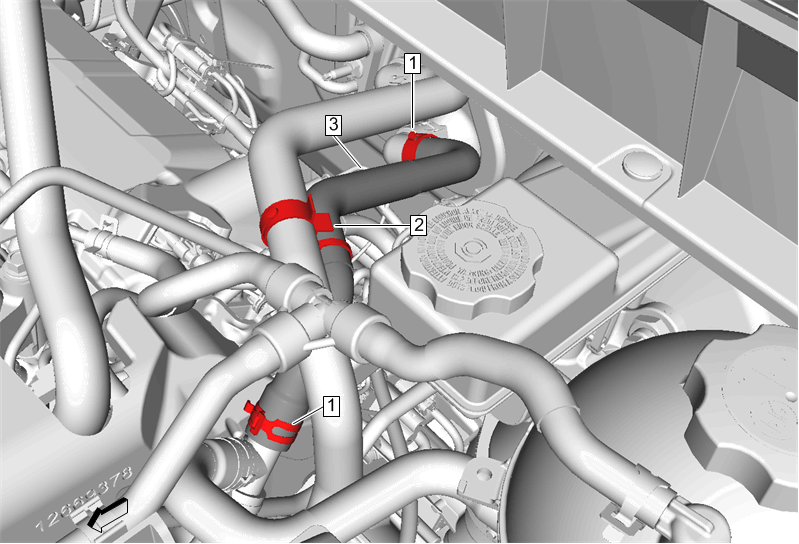

Callout	Component Name
Preliminary Procedure Drain the cooling system. Cooling System Draining and Filling (GE-47716)Cooling System Draining and Filling (Static)
1	Heater Outlet Hose Clamp (Qty: 2) Procedure Hose Clamp Replacement Guidelines - Spring Type
2	Heater Outlet Hose Strap
3	Heater Outlet Hose Procedure Fill the cooling system to the proper level. Cooling System Draining and Filling (GE-47716)Cooling System Draining and Filling (Static) Start the engine and check for coolant leaks.
