Heater Outlet Hose Replacement (LGX With Rear Aux HVAC Quick Connect Connector To Auxiliary A/C Evaporator Intermediate Tube Quick Connect Connector)

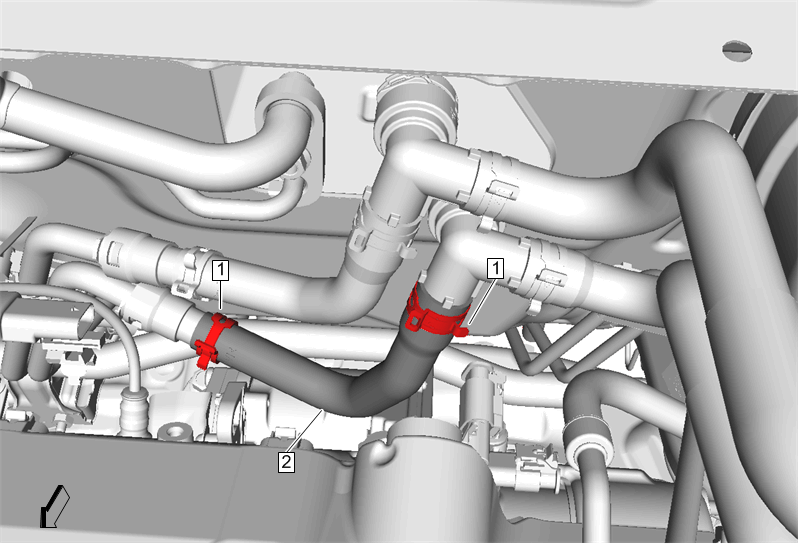

Callout	Component Name
Preliminary Procedure  Drain the cooling system. Cooling System Draining and Filling (GE-47716)Cooling System Draining and Filling (Static)
1	Heater Outlet Hose Clamp (Qty: 2) Procedure  Hose Clamp Replacement Guidelines - Spring Type
2	Heater Outlet Hose Procedure Fill the cooling system to the proper level. Cooling System Draining and Filling (GE-47716)Cooling System Draining and Filling (Static) Start the engine and check for coolant leaks.
