Engine Oil Level, Pressure Control and Engine Mount Actuators

WARNING: This page is about a different car, the 2016 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

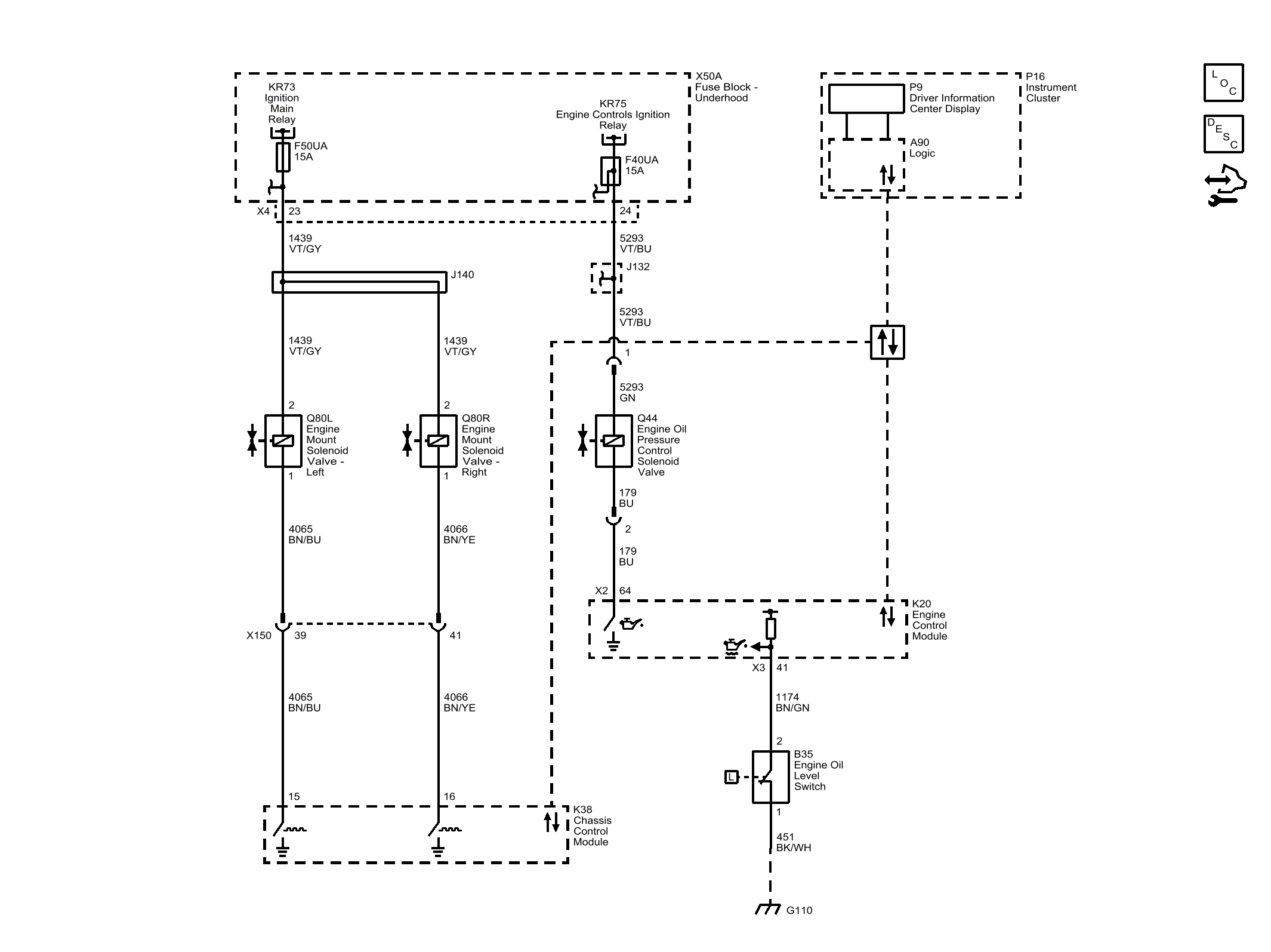

Fig 1: Engine Oil Level, Pressure Control and Engine Mount Actuators
GM4050758Courtesy of GENERAL MOTORS COMPANY
