Battery Negative Cable Disconnection And Connection (With KL9)

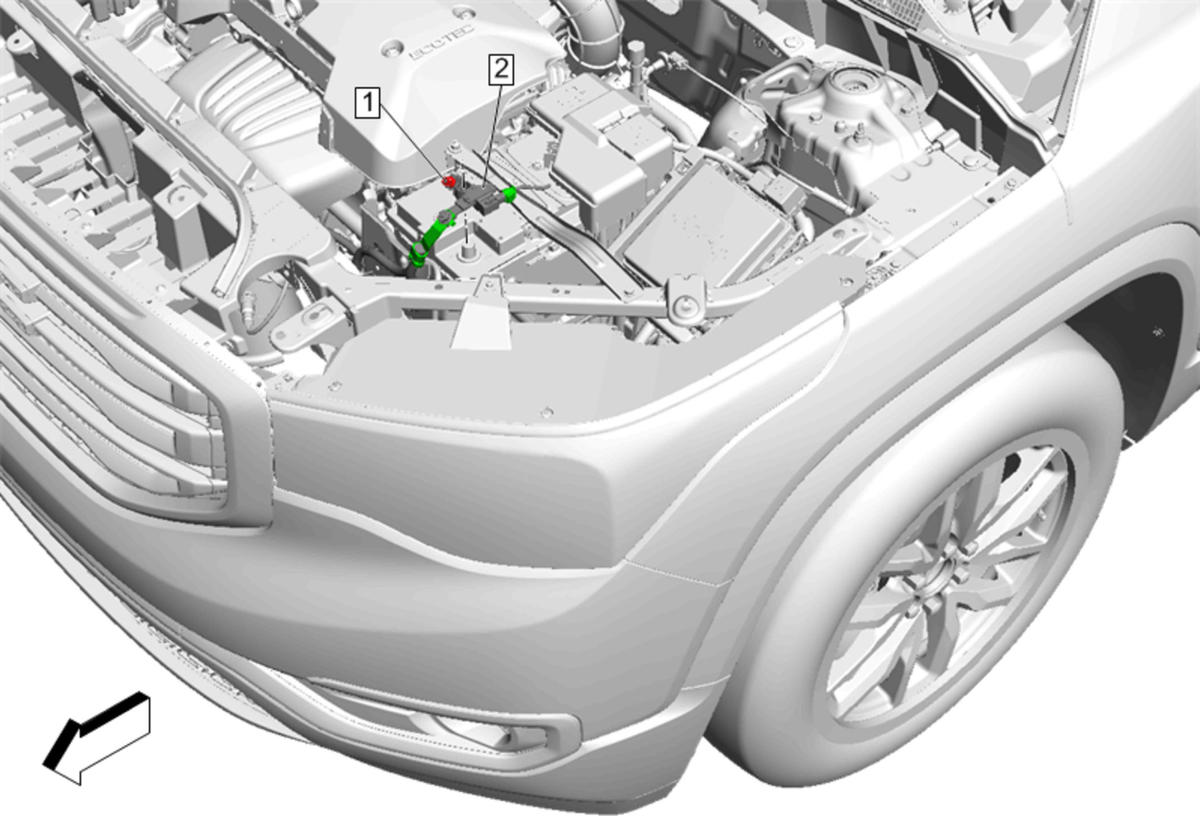

Callout	Component Name
1	Battery Post Negative Cable Clamp Nut WARNING: Refer to Battery Disconnect Warning . CAUTION: Refer to Fastener Caution Tighten  4.5 N.m (40 lb in)
2	Battery Negative Cable Procedure  Loosen the battery post negative cable clamp nut (1) and reposition away the battery negative cable. (2)
