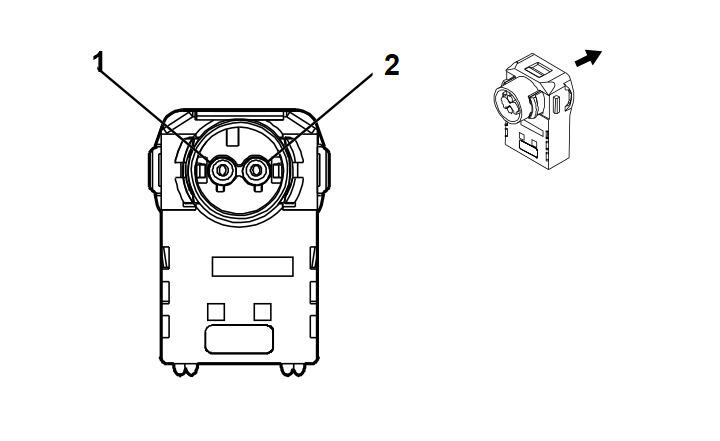

F114D Knee Air Bag - Driver
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13596550
- Service Connector: 19355489
- Description: 2-Way F 1.0 MAC Series (PK with YE Cover)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG/BU |
3078 |
Driver Knee Module High Control |
I |
- |
| 2 |
0.5 |
GY/OG |
3079 |
Driver Knee Module Low Control |
I |
- |
