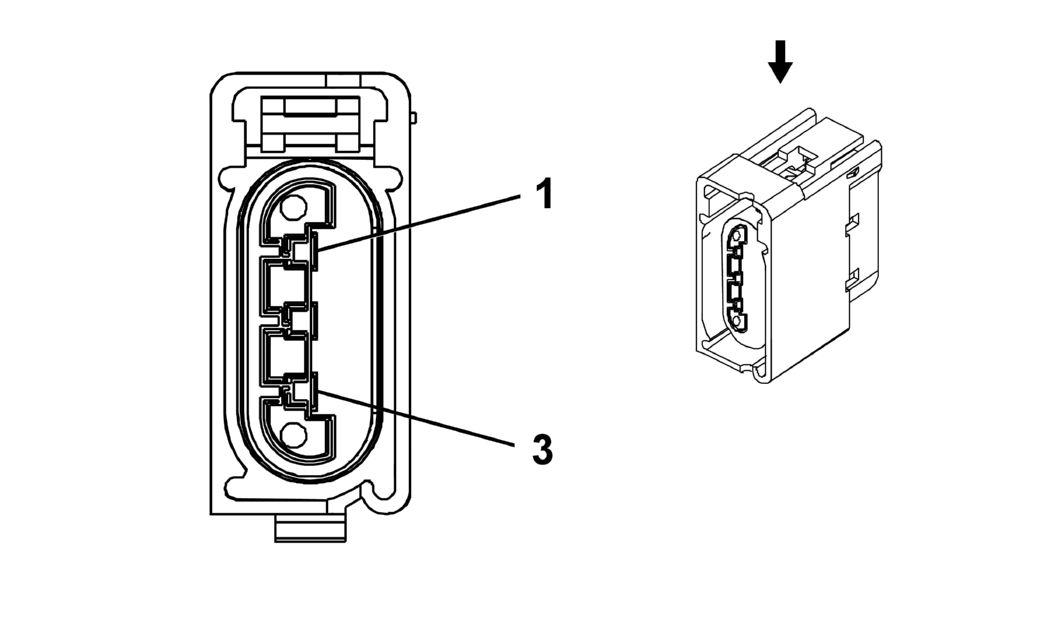

E4LF Turn Signal Lamp - Left Front (T7E)
|
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 13593009
- Service Connector: 19354828
- Description: 3-Way F 1.5 Series, Sealed (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU/WH |
1314 |
Left Front Turn Signal Lamp Control |
I |
T7E |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.5 |
BK |
150 |
Ground |
I |
T7E |
