Installation Procedure
- Rear Brake Hose - Install

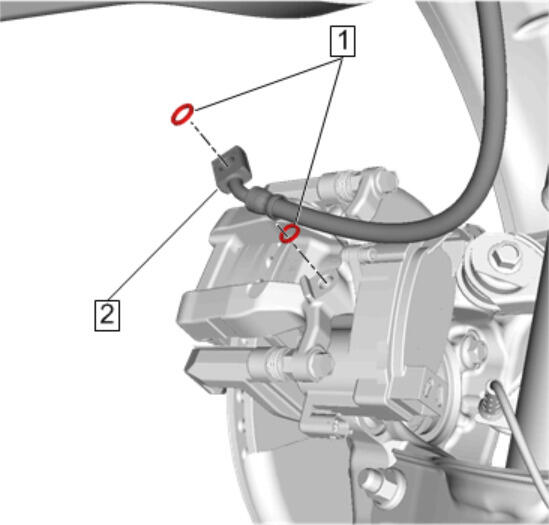

Brake Hose Fitting Gasket (1) @ Brake Hose Fitting (2) - Install NEW (Qty: 2)
- CAUTION:

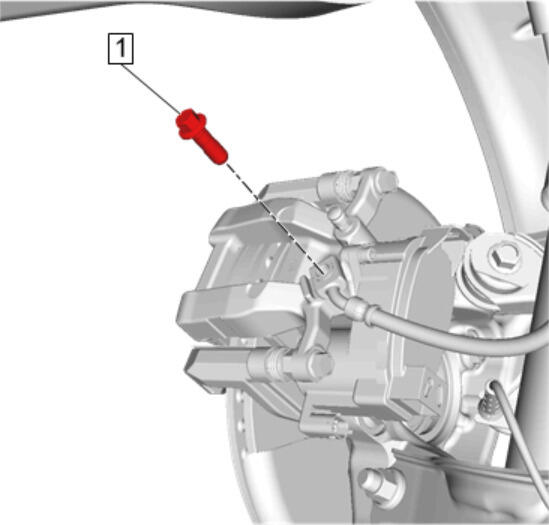

Brake Hose Fitting Bolt (1) - Install and tighten 44 N.m (32 lb ft)

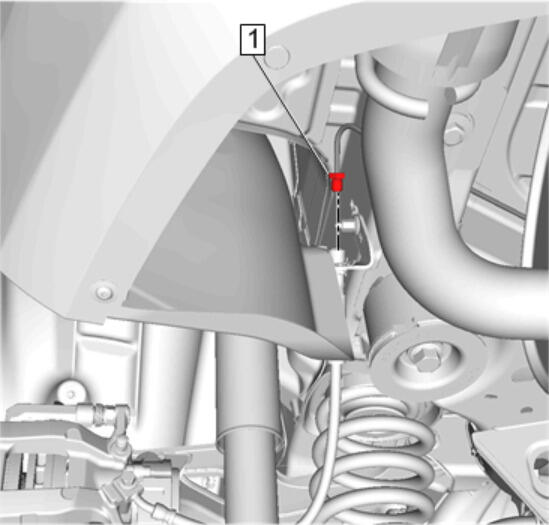

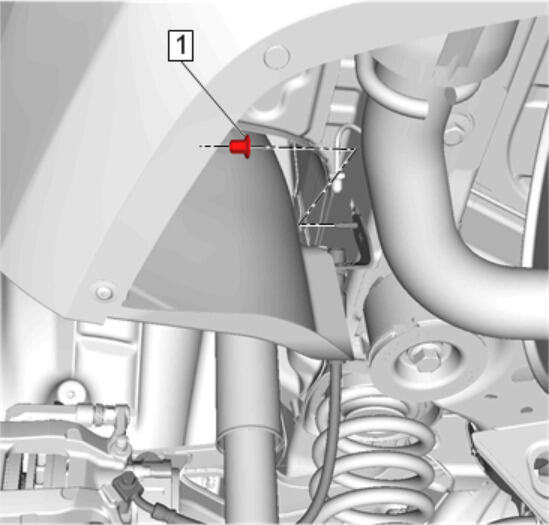

Brake Hose Bracket Nut (1) - Install and tighten 9 N.m (80 lb in)
Brake Pipe Fitting (1) - Install and tighten 18 N.m (13 lb ft)
- Bleed the brake system. Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Pressure)
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation
