Brake Fluid Level Indicator Switch Replacement

Callout	Component Name
Preliminary Procedures Without disconnecting the hoses, remove and position aside the radiator surge tank. Radiator Surge Tank Replacement (LGX with V08)Radiator Surge Tank Replacement (LCV) Disconnect the electrical connector.

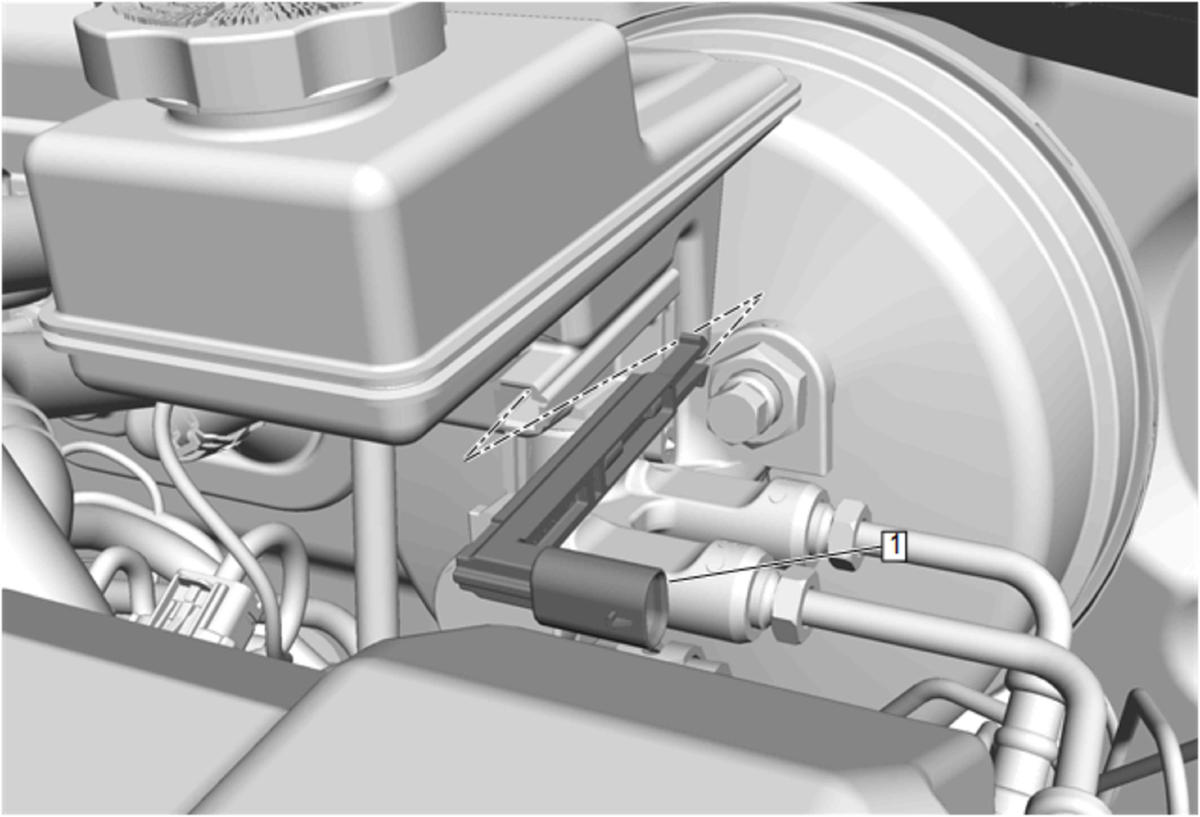

1	Brake Fluid Level Indicator Switch Procedure Connect the electrical connector.

Callout

Component Name

Preliminary Procedures

Without disconnecting the hoses, remove and position aside the radiator surge tank. Radiator Surge Tank Replacement (LGX with V08)Radiator Surge Tank Replacement (LCV)
Disconnect the electrical connector.

Brake Fluid Level Indicator Switch
Procedure
Connect the electrical connector.
