Heater Outlet Hose Replacement (LCV Quick Connect Connector To Auxiliary Air Conditioning Evaporator Intermediate Tube)

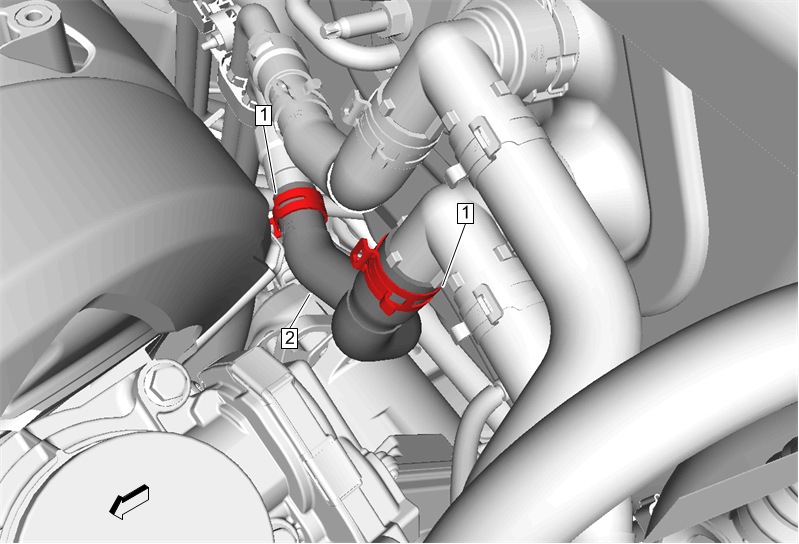

GM4374984

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Cooling System Draining and Filling (GE-47716)Cooling System Draining and Filling (Static)
Air Cleaner Outlet Duct - Remove - Air Cleaner Outlet Duct Replacement

1

Heater Outlet Hose Clamp (Qty: 2)
Procedure
Hose Clamp Replacement Guidelines - Spring Type

2

Heater Outlet Hose

Procedure

Fill the cooling system to the proper level. Cooling System Draining and Filling (GE-47716)Cooling System Draining and Filling (Static)
Start the engine and check for coolant leaks.
