Heater Inlet Hose Replacement (LGX With Rear Aux HVAC Quick Connect Connector To Auxiliary Air Conditioning Evaporator Intermediate Tube)

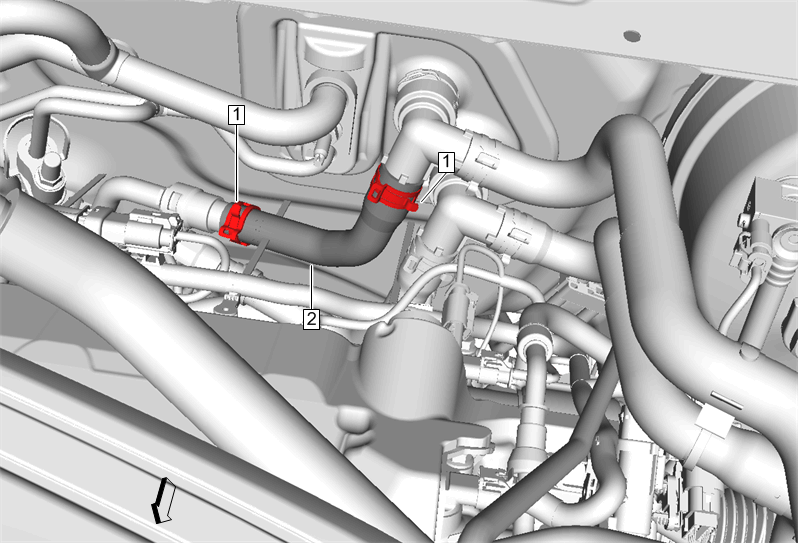

Callout	Component Name
Preliminary Procedure  Drain the cooling system. Cooling System Draining and Filling (GE-47716)Cooling System Draining and Filling (Static)
1	Heater Inlet Hose Clamp (Qty: 2) Procedure  Hose Clamp Replacement Guidelines - Spring Type
2	Heater Inlet Hose Procedure Fill the cooling system to the proper level. Cooling System Draining and Filling (GE-47716)Cooling System Draining and Filling (Static) Start the engine and check for coolant leaks.
