Evaporator Air Temperature Sensor Replacement

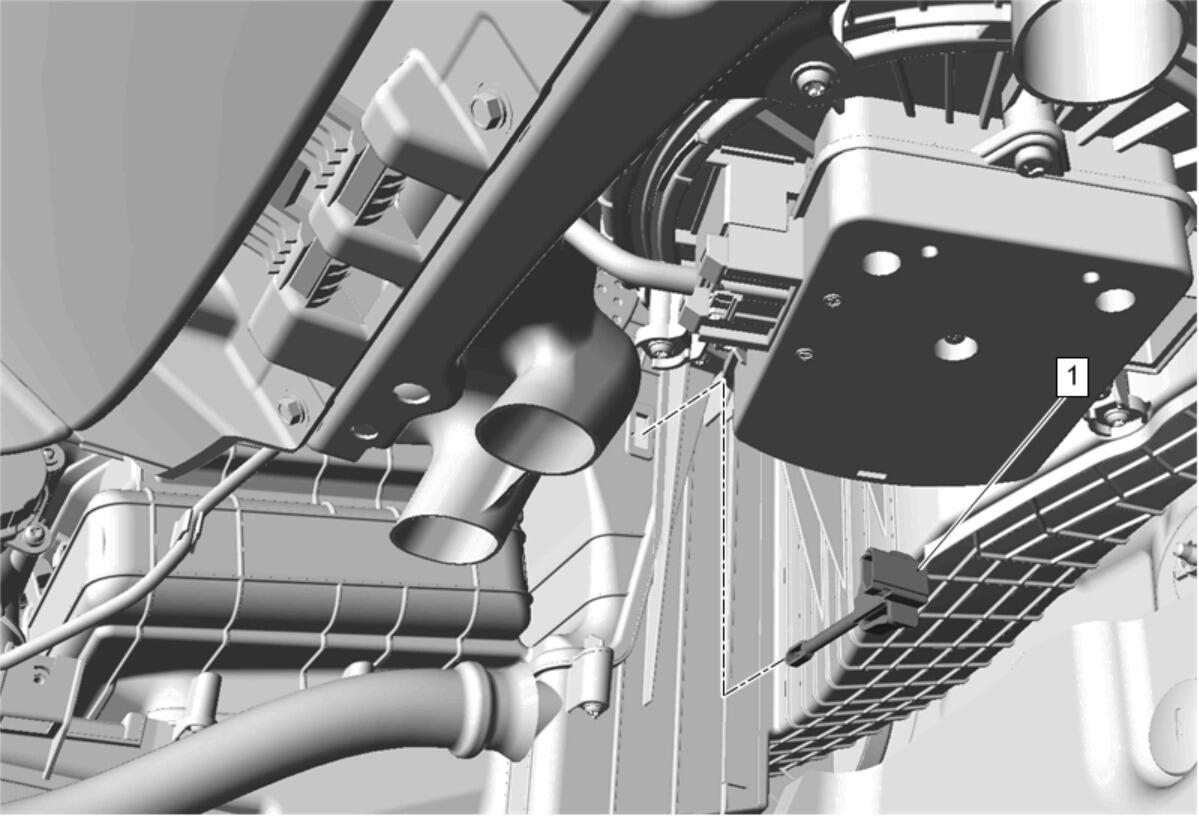

GM4288850
Callout Component Name
Preliminary Procedure
Instrument Panel Insulator Replacement - Right Side
1 Evaporator Air Temperature Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Clear the DTCs from the heater and air conditioning remote control module.
