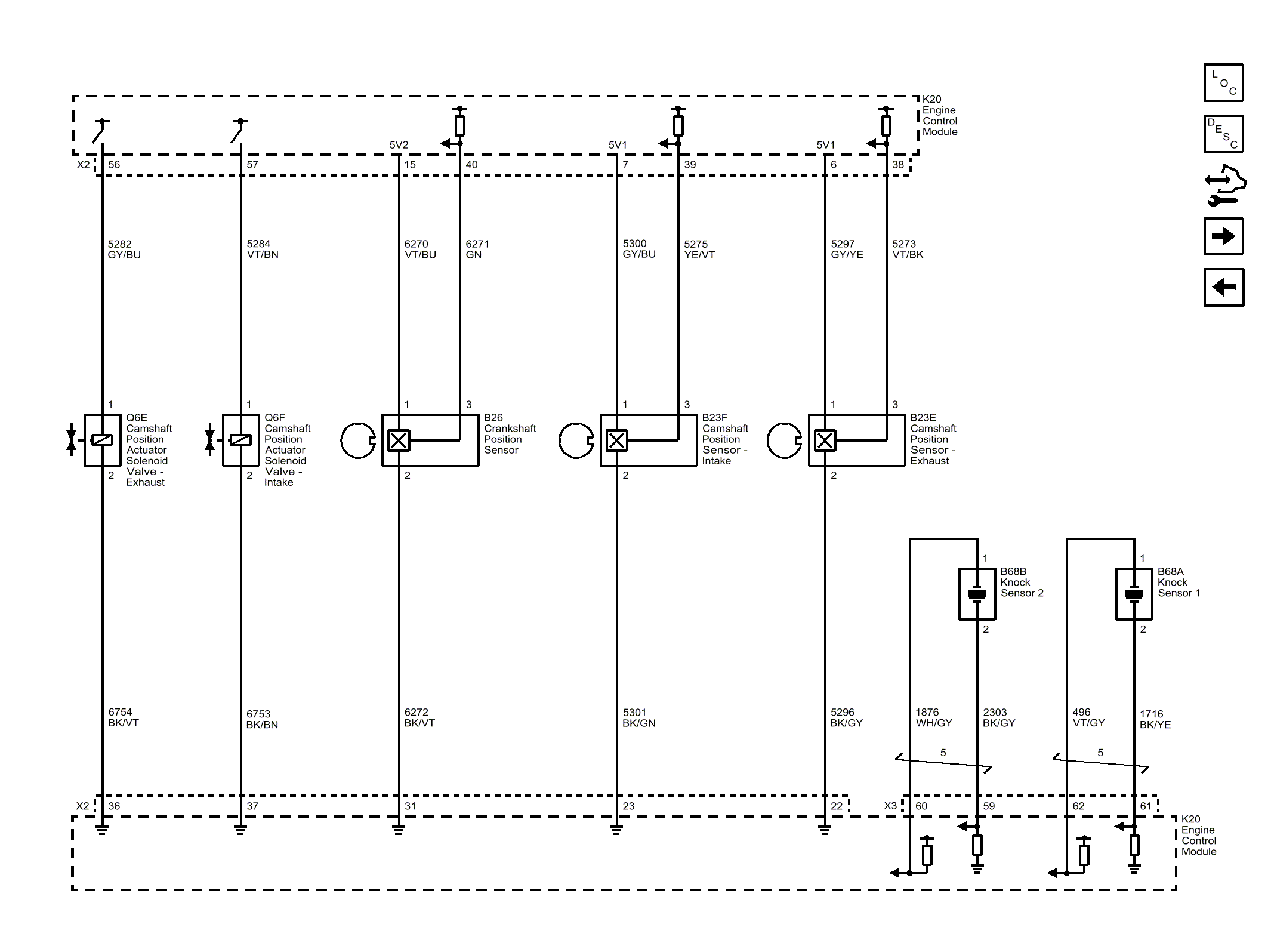

Ignition Controls - Ignition Sensors, and Camshaft Actuators

WARNING: This page is about a different variant/trim than selected.

GM4699127
