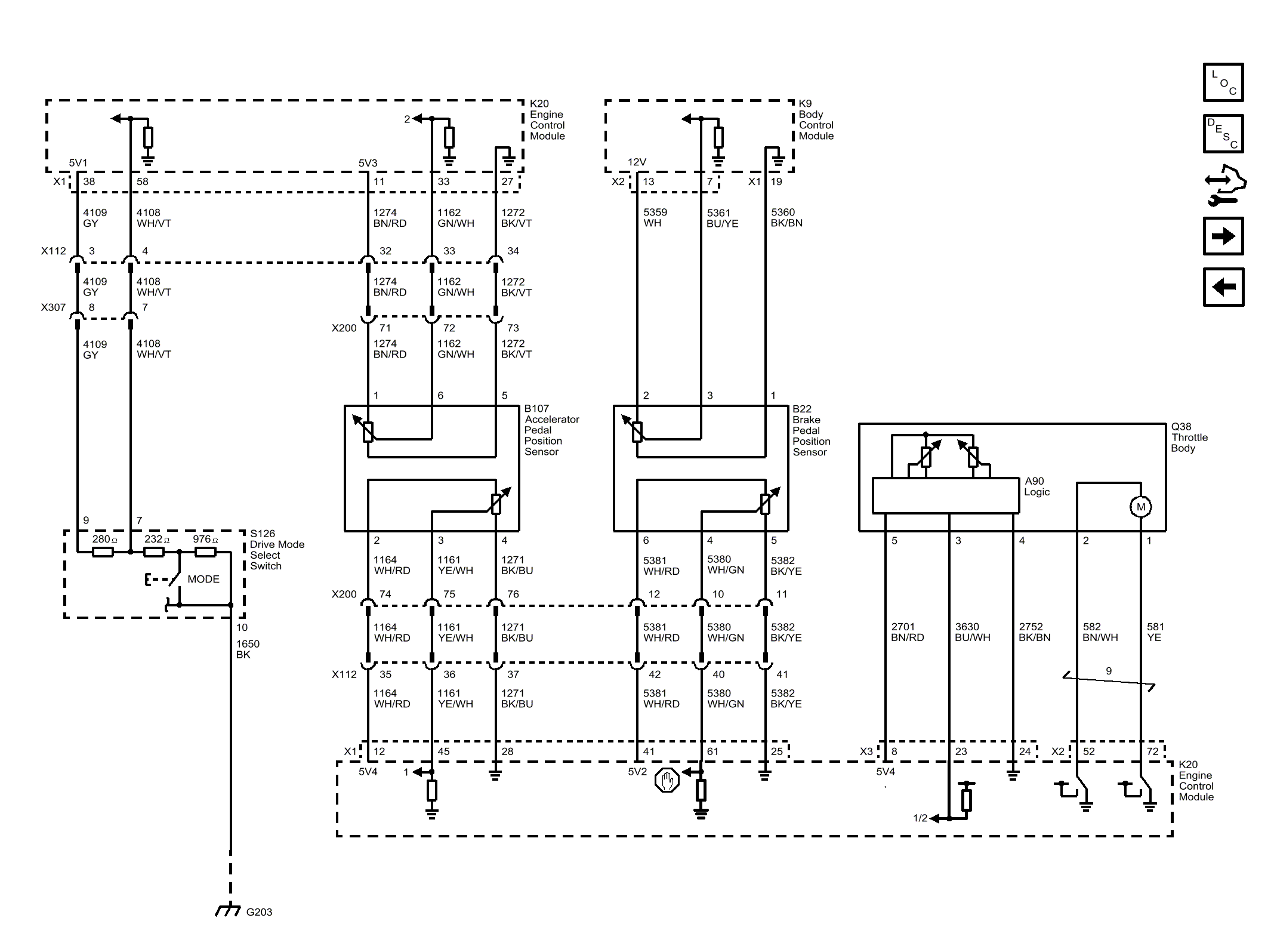

Engine Data Sensors - Throttle Controls and Override

WARNING: This page is about a different variant/trim than selected.

GM4699116
