Section 9 (Engine Controls And Fuel - 2.5L (LCV) - Wiring Schematics And Routing Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>

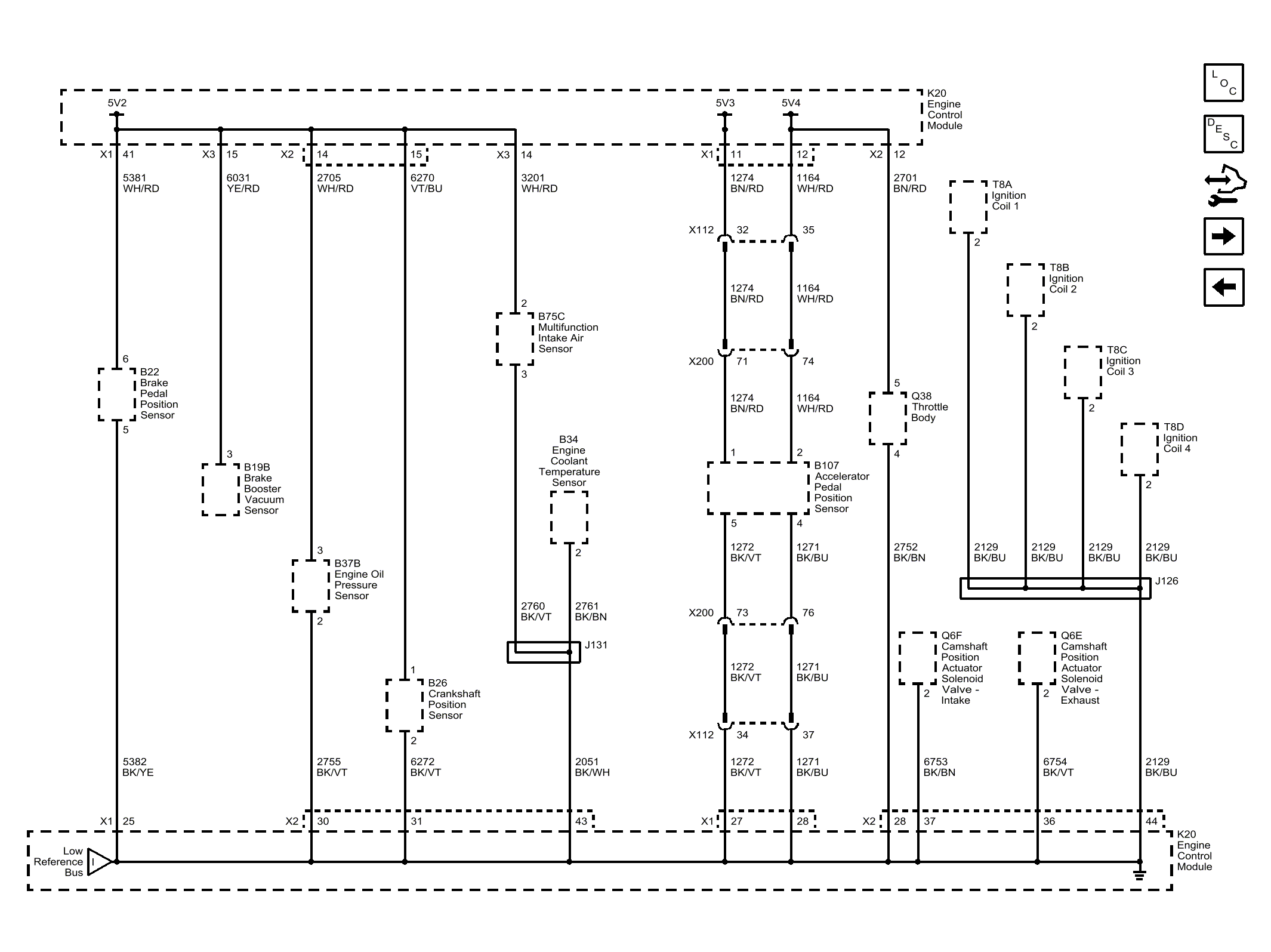

5V2, 5V3, and 5V4, and Low Reference Bus (2 of 2)
5V2, 5V3, and 5V4, and Low Reference Bus (2 of 2)
WARNING:
This page is about a different variant/trim than selected.
