Section 9 (Engine Controls And Fuel - 2.5L (LCV) - Wiring Schematics And Routing Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Controls Wiring Schematics
>>

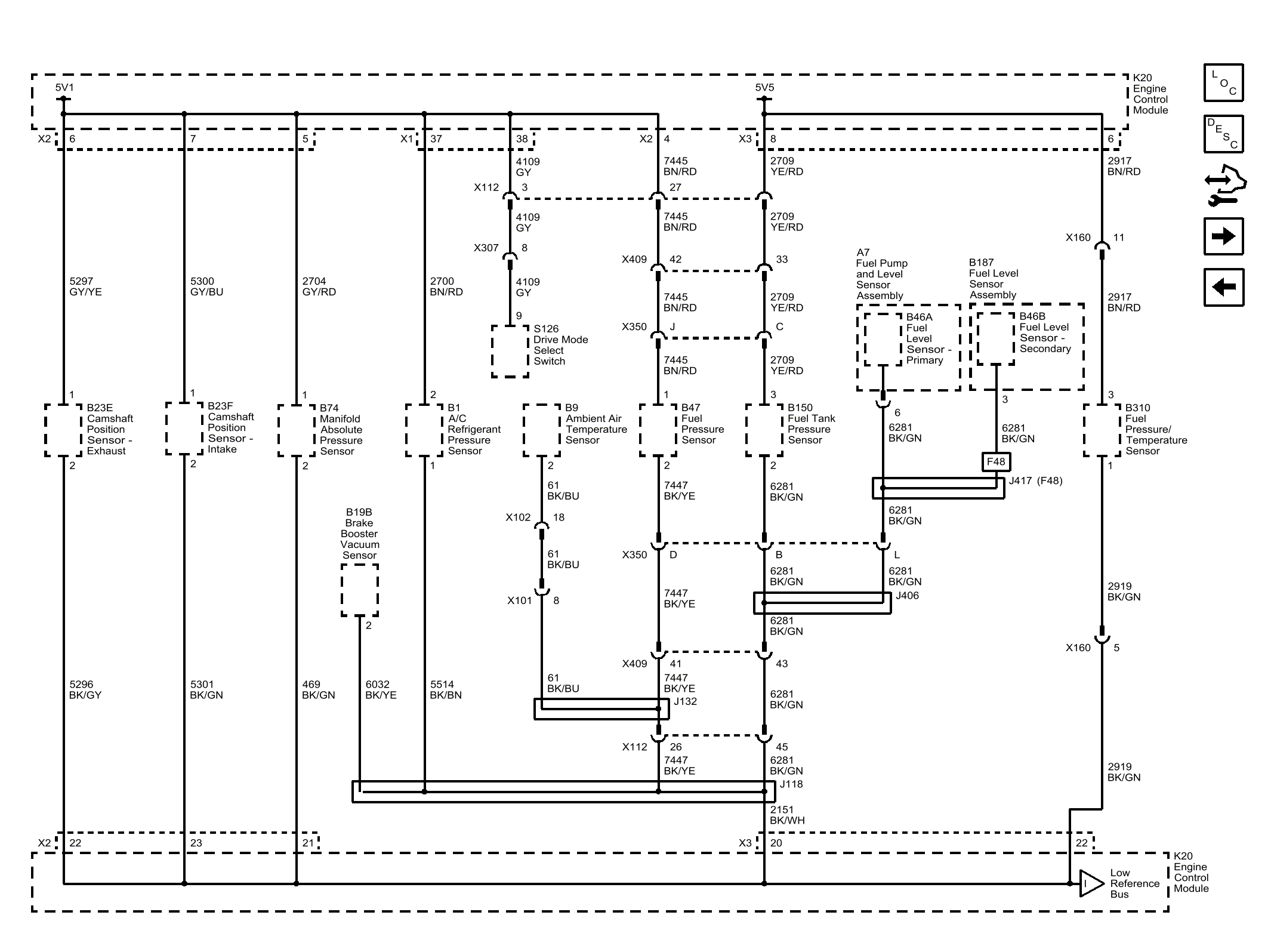

5V1, 5V5, and Low Reference Bus (1 of 2)
5V1, 5V5, and Low Reference Bus (1 of 2)
WARNING:
This page is about a different variant/trim than selected.
