Section 7 (Engine Mechanical - 2.5L (LCV))
>>
Schematic Wiring Diagrams
>>
Engine Mechanical Wiring Schematics
>>

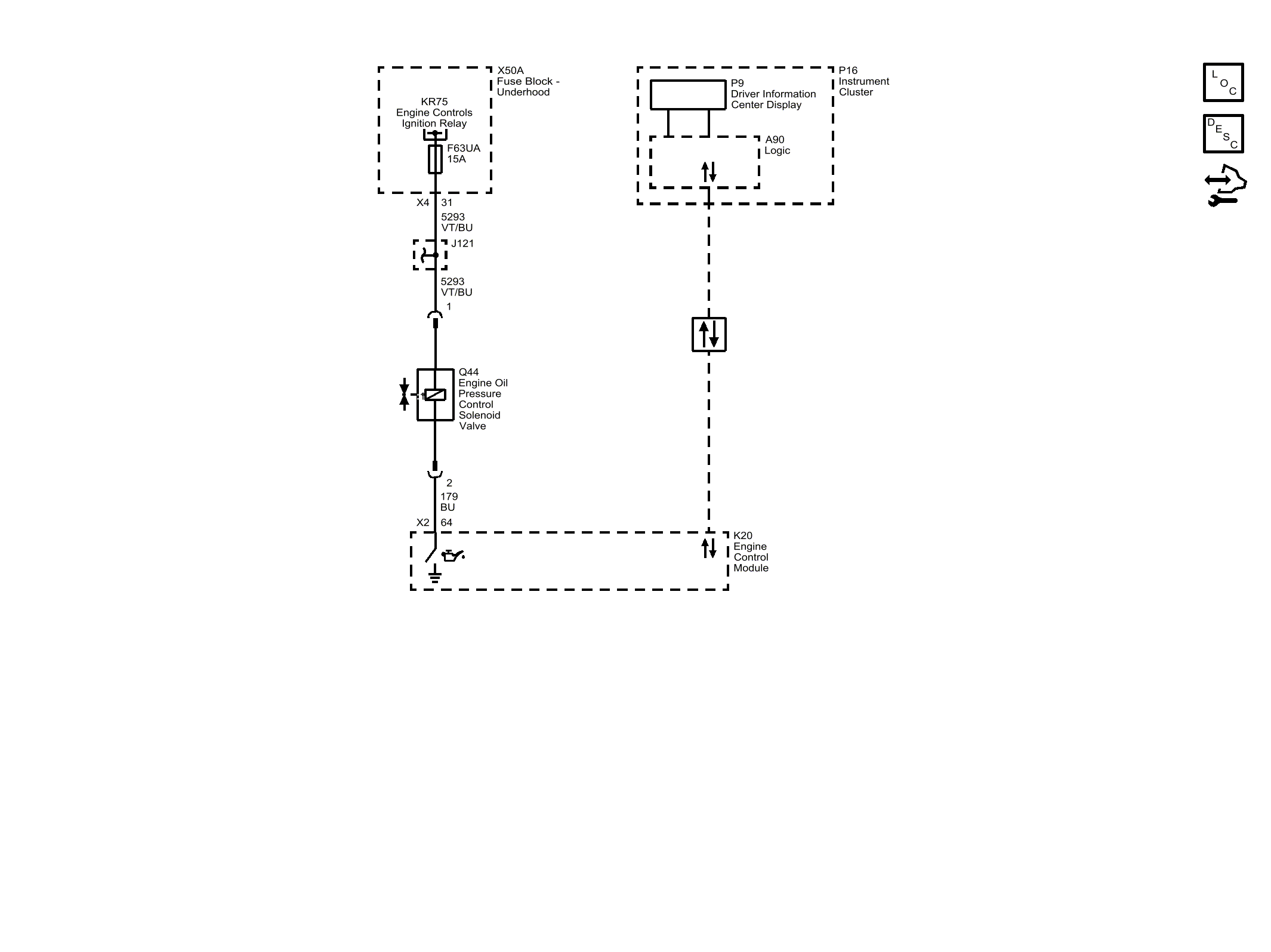

Oil Level Switch and Pressure Control
Oil Level Switch and Pressure Control
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
