Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. GM3924782Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • The lower crankcase surface must be free of contamination prior to applying the sealer.
    • Install and align the oil pan to block within 10 minutes of applying the sealer.
    • The oil pan must be fastened to final torque specification within 60 minutes of applying the sealer.

    Apply a 4.25 mm bead of sealer (1) on the level part of the flange around the perimeter of the oil pan (2) as shown. Adhesives, Fluids, Lubricants, and Sealers .

  2. GM4244610Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    When installing the oil pan, carefully align the oil pan to the locating pins then install the pan onto the lower crankcase.

    Oil Pan Bolt (1, 2, 3) - Loosely install

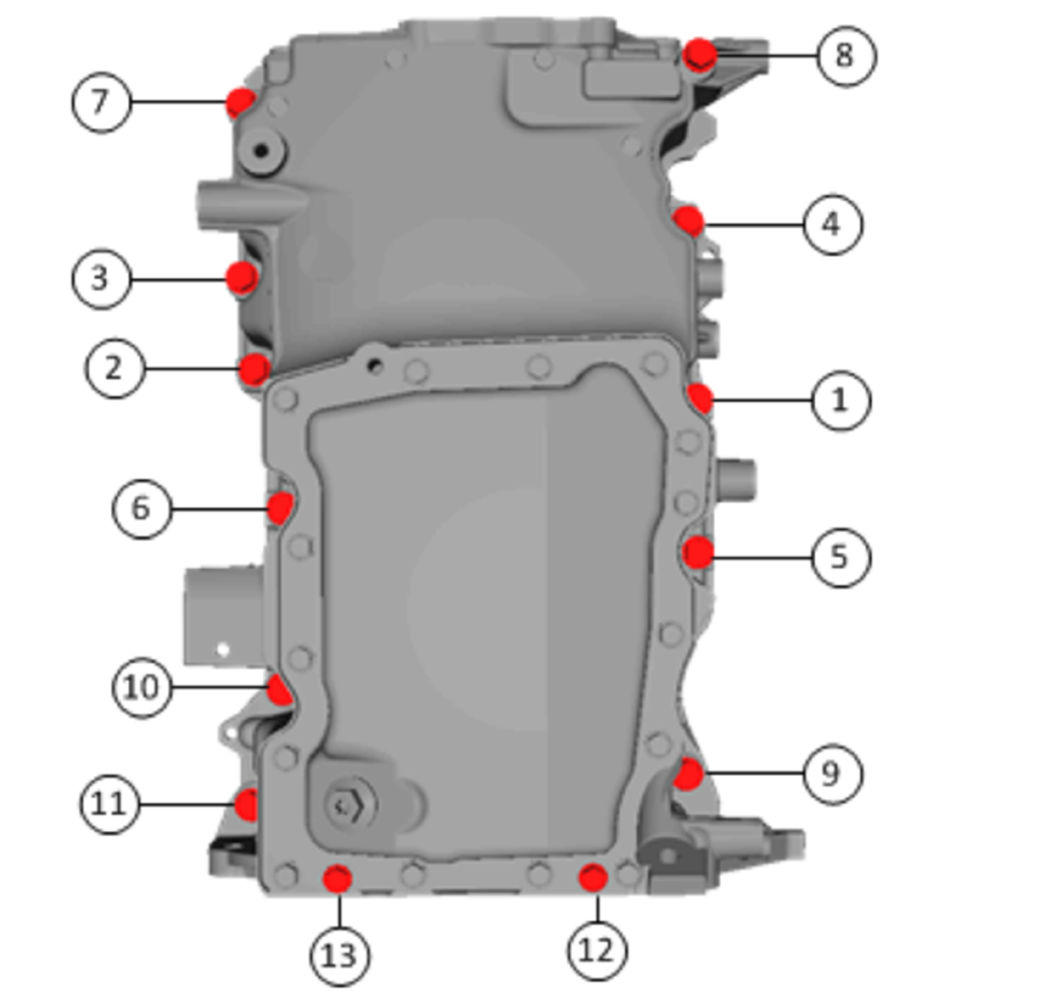

  3. Fig 1: Oil Pan Bolts With Tightening Sequence
    GM4354893Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Tighten the oil pan bolts in sequence to final torque twice using the following procedure:

    Tighten

    1. Tighten bolts in sequence 1 - 11 to 25 N.m (18 lb ft).
    2. Tighten bolts in sequence 12 - 13 to 10 N.m (89 lb in).
  4. GM4354505Courtesy of GENERAL MOTORS COMPANY

    Catalytic Converter Brace (2) - Install

    Catalytic Converter Brace Bolt (1) - Install and tighten (Qty: 2) 25 N.m (18 lb ft)

  5. GM4354520Courtesy of GENERAL MOTORS COMPANY

    Air Conditioning Compressor Bolt (1) - Install and tighten 22 N.m (16 lb ft)

  6. GM4354215Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector. (1) - Connect

  7. Retainer (2) - Install
  8. Transmission Bolt (3) - Install and tighten 58 N.m (43 lb ft)
  9. GM4354181Courtesy of GENERAL MOTORS COMPANY

    Oil Pan Bolt (1) - Install and tighten 58 N.m (43 lb ft)

  10. Oil Pump Flow Control Valve Heat Shield - Install - Oil Pump Flow Control Valve Heat Shield Replacement
  11. Exhaust Front Pipe - Install - Exhaust Front Pipe Replacement (LCV)
  12. Engine Front Cover - Install - Engine Front Cover Replacement
  13. Drivetrain and Front Suspension Cradle - Install - Drivetrain and Front Suspension Cradle Replacement (Front Wheel Drive)
  14. Change the engine oil and filter. Engine Oil and Oil Filter Replacement .
