Intake Air Splash Shield Replacement
WARNING: This page is about a different variant/trim than selected.

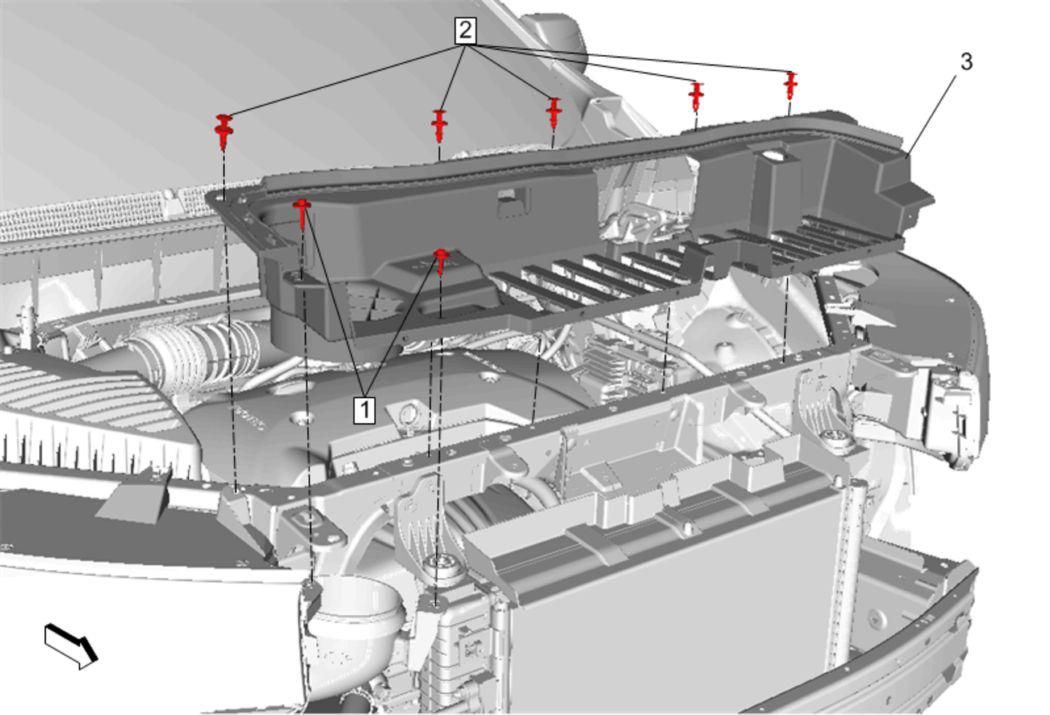

| Callout | Component Name |
|---|---|
| Preliminary Procedure Radiator Air Upper Baffle Replacement (LCV) |
|
| 1 | Intake Air Duct Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Intake Air Splash Shield Retainer (Qty: 5) |
| 3 | Intake Air Splash Shield |
