Removal Procedure
WARNING: This page is about a different variant/trim than selected.
- Fuel Tank - Remove - Fuel Tank Replacement (AWD)
- Disconnect the electrical connector.

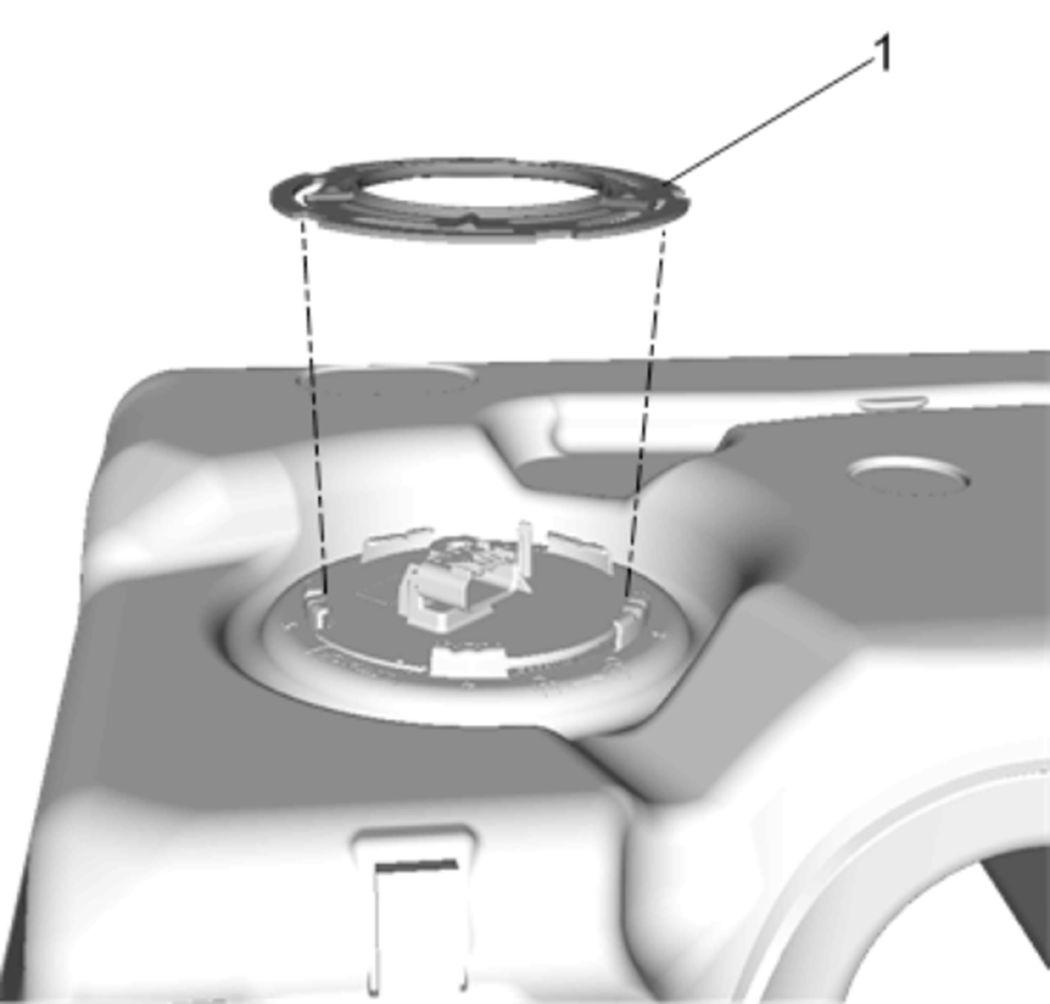

Use the CH 45722 wrench by turning counter clockwise and remove the lock ring (1).
Transfer Hose (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

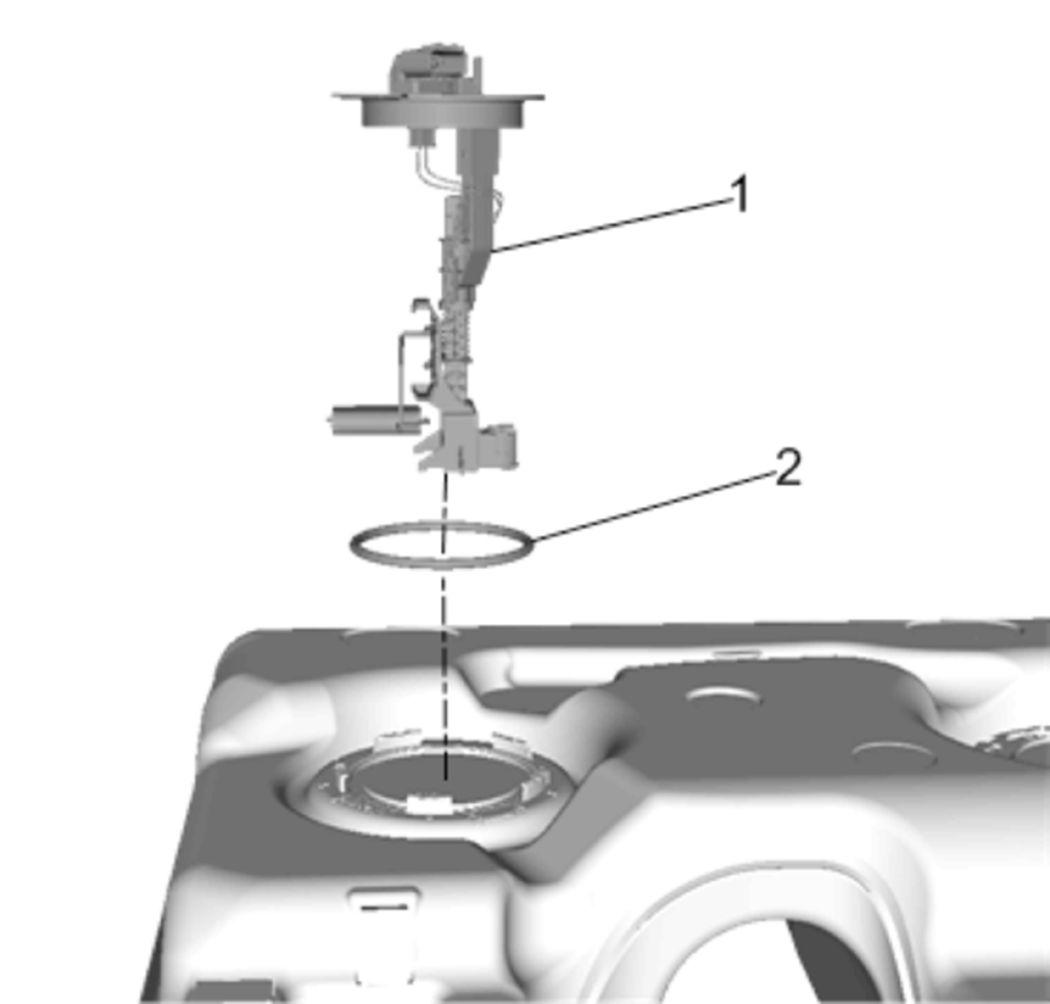

Fuel Sender (1) - Remove
- Fuel Pump Seal (2) - Remove and DISCARD
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning .
