Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Radiator Surge Tank Inlet Hose @ Air Cleaner Outlet Duct - Reposition away - Radiator Surge Tank Inlet Hose Replacement (LCV From Radiator Surge Tank to Radiator and Radiator Surge Tank Outlet Pipe)
  2. Air Cleaner Outlet Front Duct - Remove - Air Cleaner Outlet Front Duct Replacement

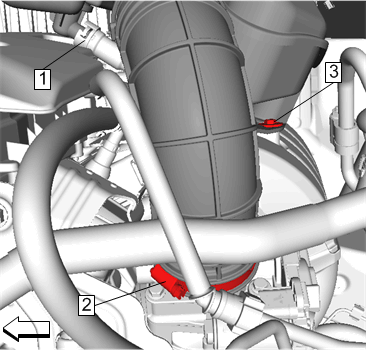

  3. GM4362732

    Positive Crankcase Ventilation Pipe (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

  4. Air Cleaner Outlet Duct Clamp (2) - Remove
  5. Air Cleaner Outlet Duct Fastener (3) - Remove
  6. GM4362759

    Air Cleaner Outlet Duct Fastener (1) - Remove

  7. Air Cleaner Outlet Duct (2) - Remove
