Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the battery tray. Battery Tray Replacement .
  2. Disconnect the transmission range select lever cable to the transmission. Range Selector Lever Cable Replacement
  3. Disconnect the transmission range select lever cable from the transmission. Range Selector Lever Cable Replacement
  4. Drain the transmission fluid. Transmission Fluid Drain and Fill .
  5. GM1999448

    Disconnect the control valve body transmission control module (TCM) electrical connector (1) then unclip the connector from the transmission.

  6. GM1998666

    Remove the transmission fluid cooler inlet (1) and outlet (5) hoses from the retainer (2) on the control valve body cover.

  7. Remove the transmission fluid cooler inlet hose nut (3) from the transmission.
  8. Remove the transmission fluid cooler inlet hose (1) from the transmission.
  9. Remove the transmission fluid cooler outlet hose nut (4) from the transmission.
  10. Remove the transmission fluid cooler outlet hose (5) from the transmission.
  11. Plug and/or cap the hose and transmission to prevent contamination.
  12. GM4375268

    Remove the upper transmission to engine bolts (1, 2, 3).

  13. Install the engine support fixture. Engine Support Fixture
  14. Remove the drivetrain and front suspension cradle. Drivetrain and Front Suspension Cradle Removal and Installation (All Wheel Drive)
  15. Disconnect the left wheel drive shaft from the transmission. Front Wheel Drive Half Shaft Replacement - Left Side
  16. Remove the power transfer unit. Power Transfer Unit Case Replacement
  17. Remove the rear transmission mount from the transmission. Transmission Rear Mount Replacement (All Wheel Drive)
  18. Remove the front transmission mount from the transmission. Transmission Front Mount Replacement
  19. Remove the starter. Starter Replacement (LCV - AWD)
  20. Mark the relationship of the flex plate to the torque converter for reassembly.
  21. GM4316014

    Remove the torque converter to flex plate bolts (1).

  22. Lower the vehicle.
  23. GM4361428

    Remove the left transmission mount to transmission bolts (3). Transmission Mount Replacement - Left Side

  24. Lower the transmission side with the support fixture to allow clearance for removal.
  25. Unclip the engine wiring harness from the transmission.
  26. Raise the vehicle.
  27. Use a transmission jack in order to support the transmission.
  28. Remove the oil pump flow control valve heat shield. Oil Pump Flow Control Valve Heat Shield Replacement
  29. GM4375284

    Remove the front transmission to engine bolts (1, 2, 3).

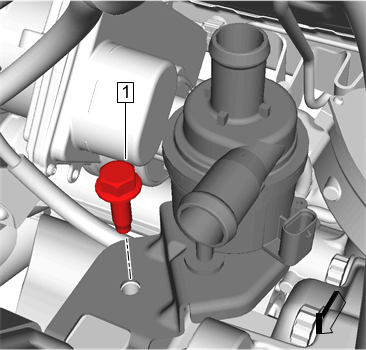

  30. GM4375660

    Remove the heater coolant pump bracket bolt, then position the pump out of the way. Heater Coolant Pump Replacement (LCV)

  31. GM4375296

    Remove the lower rear transmission fasteners (1, 2).

    32. NOTE:

    Ensure the torque converter remains securely in place on the transmission input shaft while separating and removing the transmission.

  32. Separate the transmission from the engine.
  33. Lower the transmission with the transmission jack far enough to remove the transmission.
  34. Transfer components as necessary.
  35. Flush and flow test the transmission oil cooler and lines. Transmission Fluid Cooler Flow Test and Flushing
