Installation Procedure

WARNING: This page is about a different variant/trim than selected.

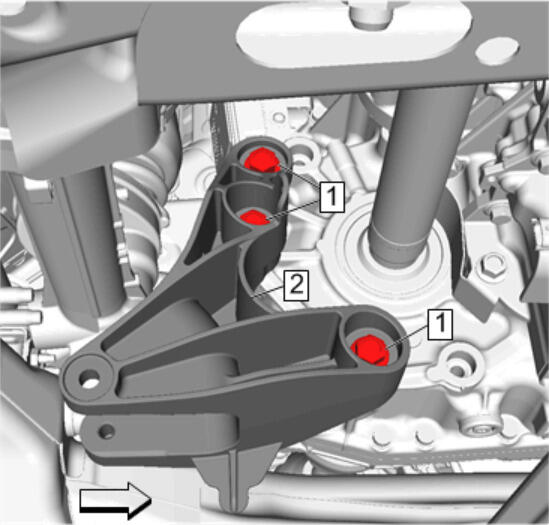

  1. Position the transmission mount bracket (2) to the transmission.
  2. GM4289994
    CAUTION:

    Refer to Fastener Caution .

    Install the three NEW transmission mount bracket to transmission bolts (1) and tighten to 100 N.m (74 lb ft) plus 40 to 60 degrees.

  3. Install the transmission rear mount. Transmission Rear Mount Replacement (Front Wheel Drive)
