Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Set the park brake and chock the wheels.
  2. GM4363825

    Disconnect the range selector cable end (1) from the range selector lever.

  3. Disconnect the range selector cable (2) from the range selector cable bracket.

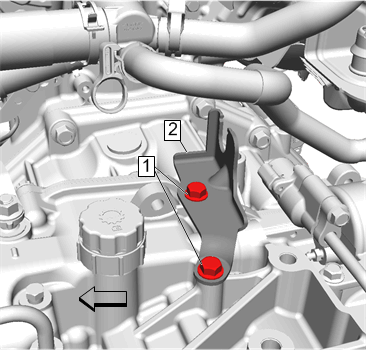

  4. GM4364101

    Remove the transmission range selector cable bracket bolts (1).

  5. Remove the transmission range selector cable bracket (2).
