Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Set the park brake and chock the wheels.

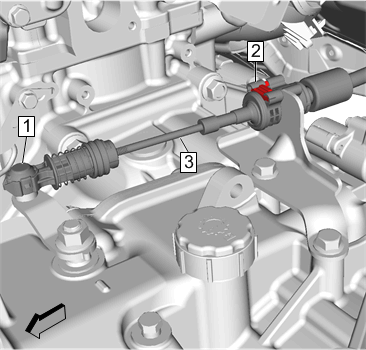

  2. GM4363825

    Disconnect the transmission range selector lever cable terminal (1) from the transmission manual shift lever pin.

  3. Push the lock in order to release the transmission range selector lever cable (2) from the cable bracket.
  4. GM2001183
    WARNING:

    Hold the transmission range selector lever while removing or installing the lever retaining nut. Failure to hold the lever can cause damage to the transmission internal park system components which could allow the vehicle to roll when placed in the park position.

    Remove the transmission range selector lever nut (1).

  5. Remove the transmission range selector lever (2).
