Automatic Transmission Control Indicator Replacement

WARNING: This page is about a different variant/trim than selected.

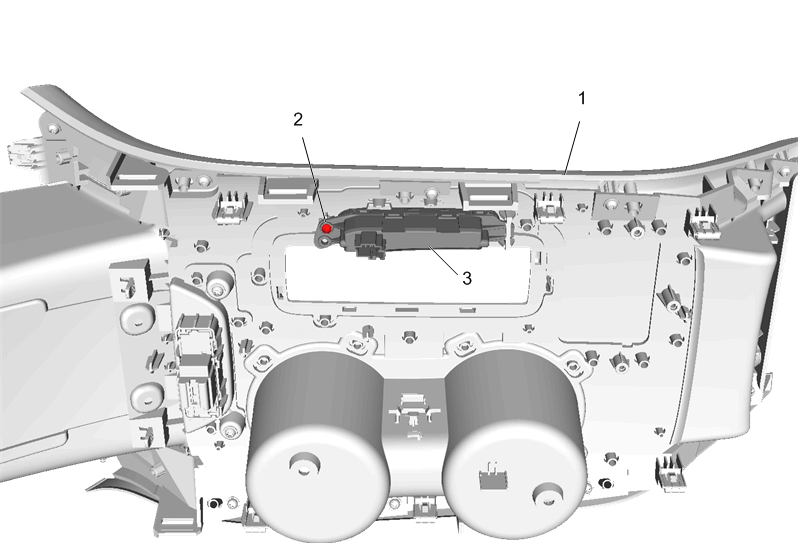

GM4379258
Callout Component Name
1 Front Floor Console Trim Plate Replacement
2 Automatic Transmission Control Indicator Assembly Screw (Qty: 1)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
3 Automatic Transmission Control Indicator Assembly
