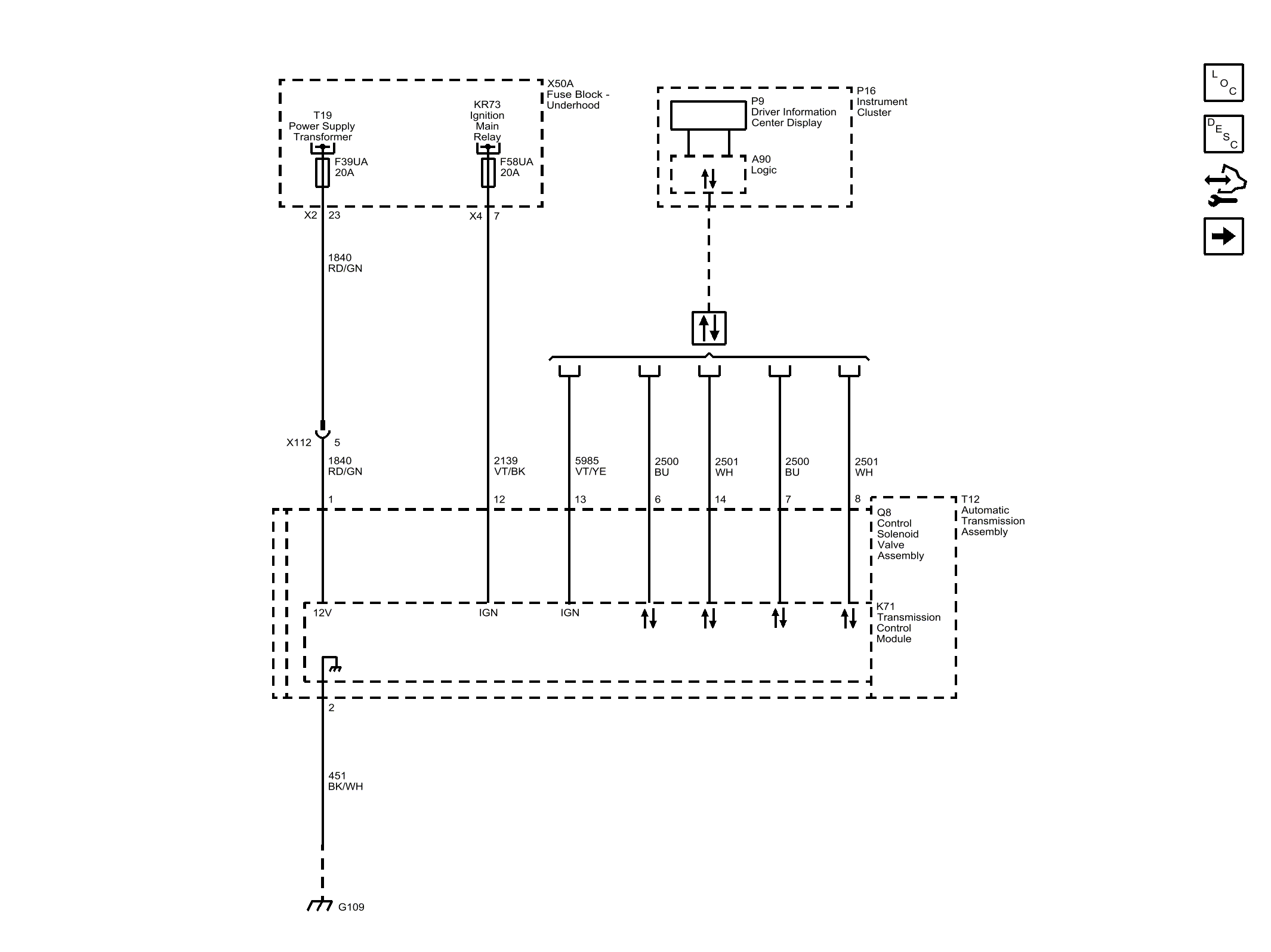

Power, Ground, Serial Data and MIL (M2D)

WARNING: This page is about a different variant/trim than selected.

GM4702117
