Transmission Fluid Pump, Front Differential Carrier Baffle, And Front Differential Ring Gear Removal (Gen 3)
WARNING: This page is about a different variant/trim than selected.

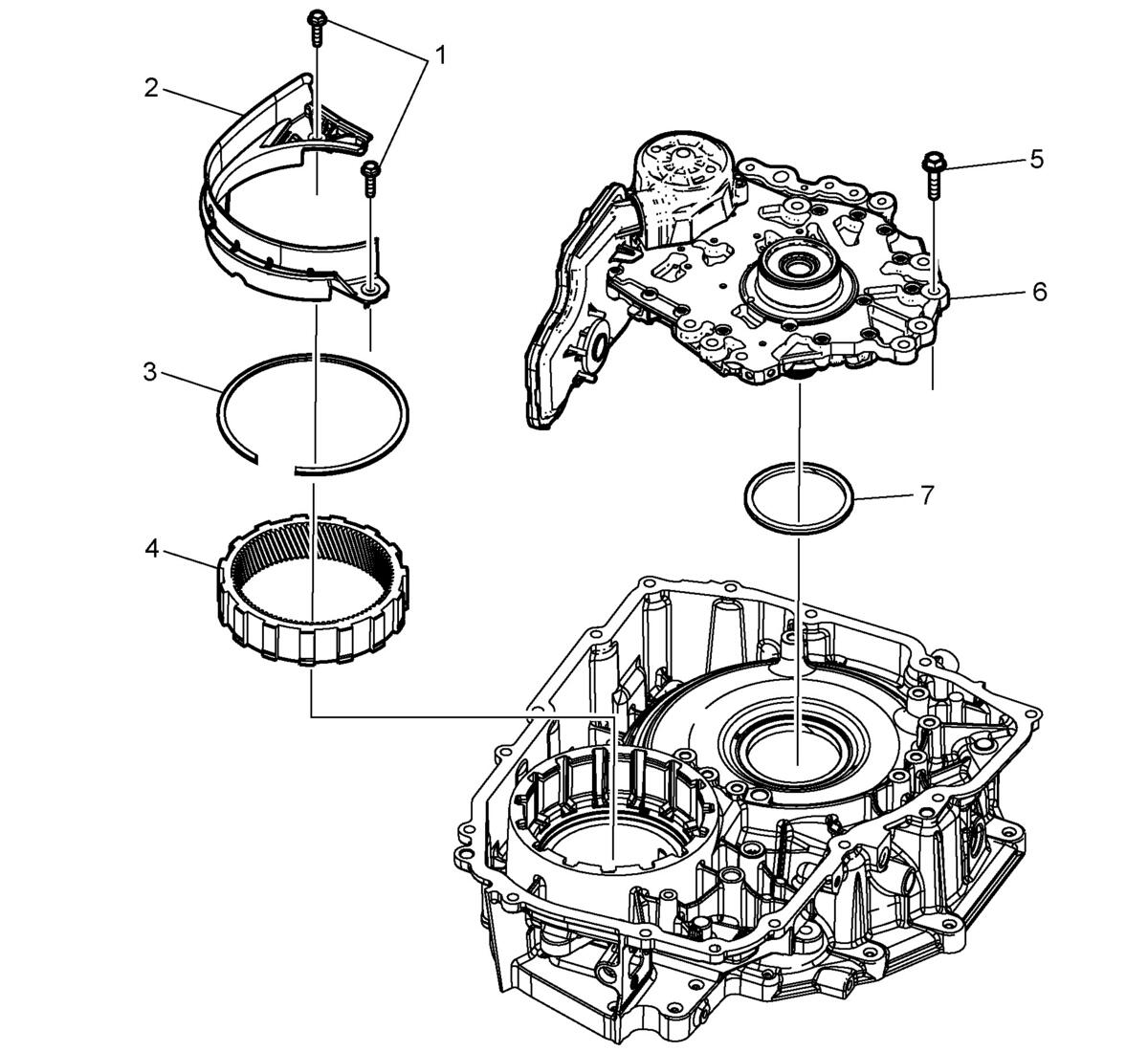

Fig 1: Exploded View Of Transmission Fluid Pump, Front Differential Carrier Baffle, And Front Differential Ring Gear Components (Gen 3)
| Callout | Component Name |
|---|---|
| 1 | Front Differential Carrier Baffle Bolts M6 x 25 (Qty: 2) |
| 2 | Front Differential Carrier Baffle |
| 3 | Front Differential Ring Gear Retainer
NOTE:
Note the direction of the taper to ensure proper installation. |
| 4 | Front Differential Ring Gear |
| 5 | Automatic Transmission Fluid Pump Bolts M8 x 33 (Qty: 8) |
| 6 | Automatic Transmission Fluid Pump |
| 7 | Torque Converter and Differential Housing Seal |
